control joints + expansion joints
Expansion joints and control joints are essential components in helping to prevent cracking by accommodating movement caused by temperature fluctuations, moisture changes, or structural loads.
Marino\WARE® steel accessories are engineered to meet or exceed industry standards, including ASTM and AISI specifications. We offer consistent quality, uniform lengths, and required tolerances for reliable performance.
ASTM C1063, ASTM B69, ASTM C1047
PRODUCT DETAILS
093 CONTROL JOINT
USE: To relieve the stresses from expansion and contraction across the joint in large ceiling and wall areas in drywall and veneer finish systems. It is used from floor to ceiling in long partition runs and from door header to ceiling. It is also recommended for repair of existing plastered masonry. Made of roll-formed zinc to resist corrosion, it has 3/32” grounds. Plastic tape protects 1/4” wide x 7/16” deep opening, and is to be removed after installation.
STOCK LENGTHS: 10 Ft.
PACKAGING: 25 pieces per carton, weight is 27.5 lbs per box.
LIMITATION: Where sound transmission and/or fire ratings are prime considerations, an adequate seal must be provided behind the control joint.

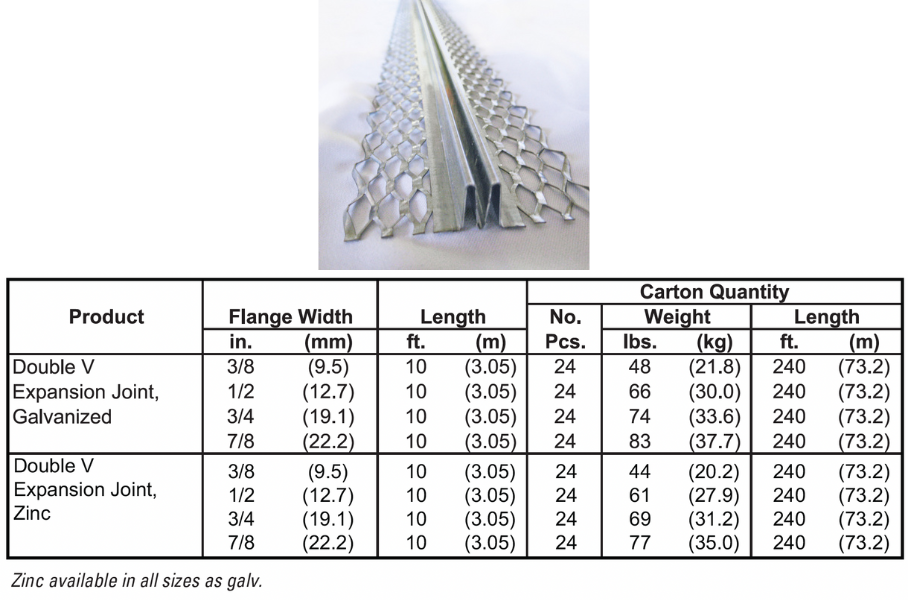

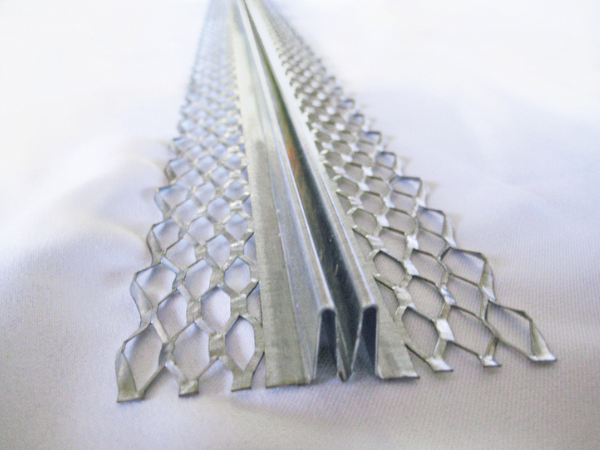

DOUBLE V EXPANSION JOINT
USE: To relieve the stresses of expansion and contraction in plaster or stucco. It is available in zinc or galvanized steel. Zinc should be used for exterior applications.
STOCK LENGTHS: 10 Ft.
PACKAGING: 24 pieces per carton
Galvanized or Zinc available in: 3/8”, 1/2”, 5/8”, 3/4”, 7/8”
