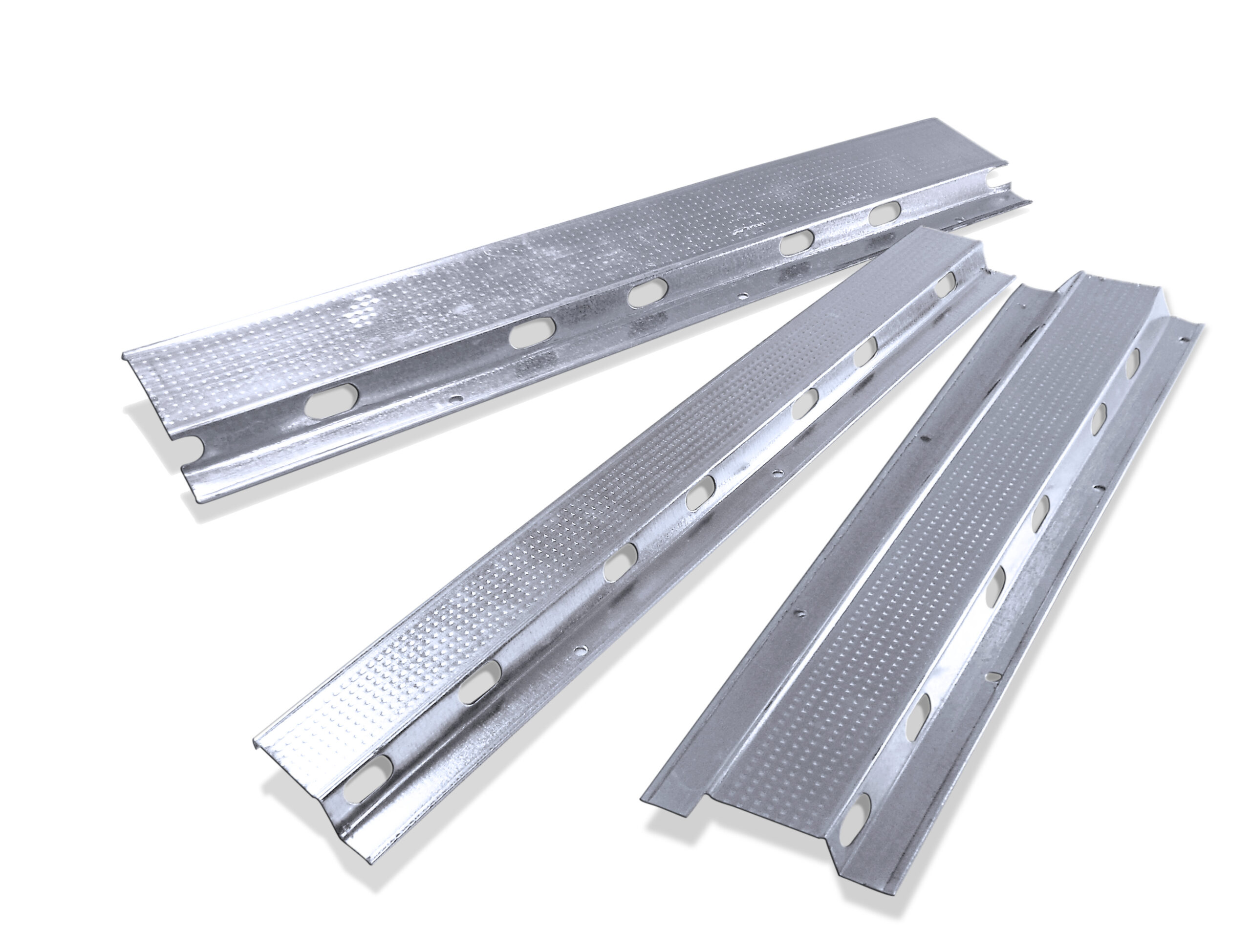

RESILIENT CHANNEL
Resilient channels reduce contact with supporting members, offering economical means for controlling sound transmission.
Marino\WARE® resilient channels are engineered to meet or exceed industry standards, including ASTM and AISI specifications. We offer consistent quality, uniform lengths, and required tolerances for reliable performance.
Download our Sound Solutions Guide for additional information and recommendations for achieving your desired STC rating.
INSTALLATION NOTE: For walls, resilient furring channels should be installed with the mounting flange down, except at the starter row where the mounting flange may be installed with the flange up.
ASTM C645, ASTM C754, ASTM A 1003
PRODUCT DETAILS

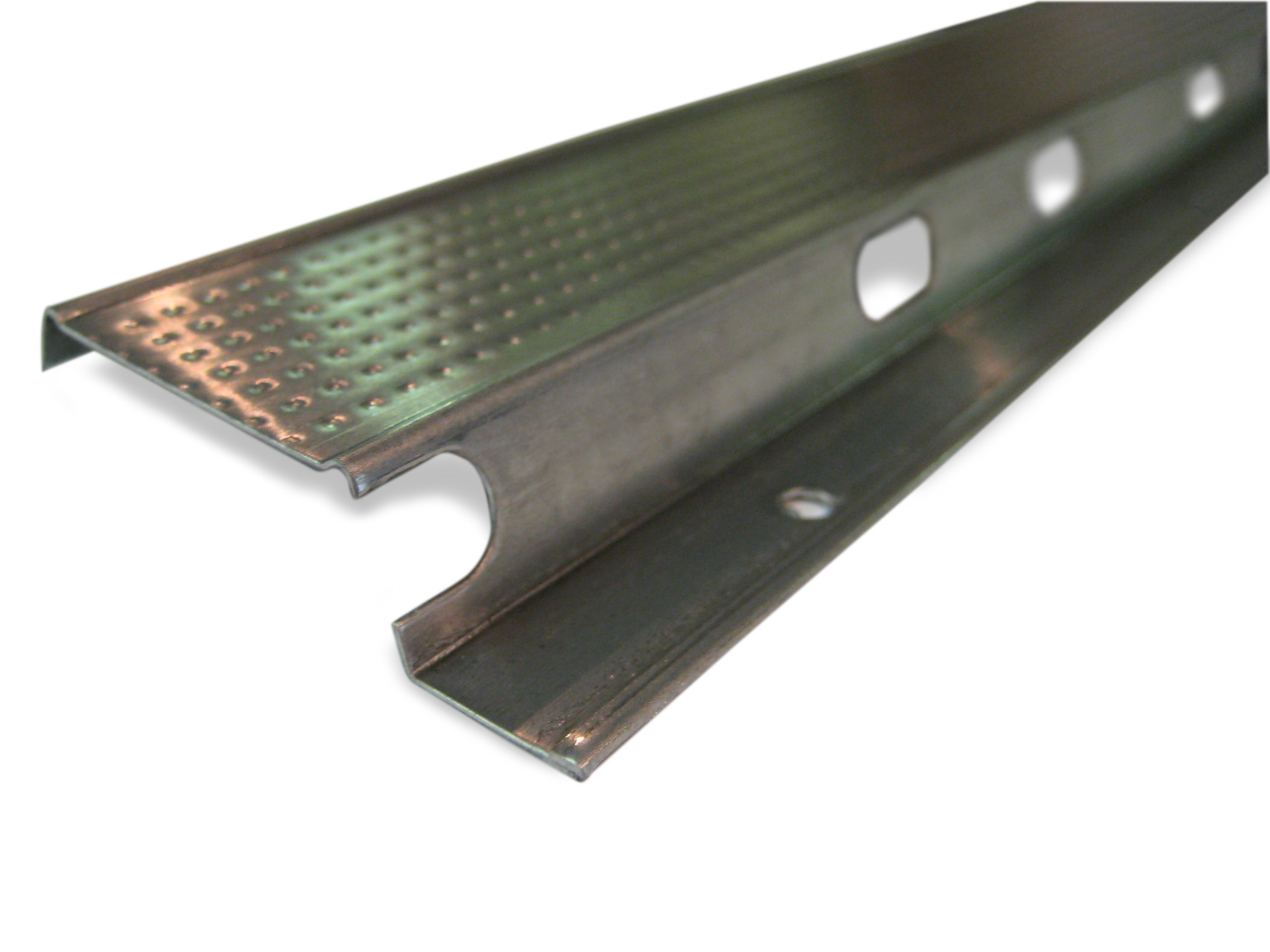

RC-1
USE: For furring over wood or steel framed walls and ceilings. Reduced contact with supporting members offers an economical means for reducing sound transmission. Refer to your Fire Resistance Design manual for STC ratings.
MATERIAL: RC-1 is 33 ksi G40, available in 20 & 25 gauge.
Model No. | Mils | Design Thickness | Size | Ft | Wt/Ft. | Bdl Qty |
RC-1 | 18 | 0.0188” | 2” | 12’ | 0.152 | 20 |
RC-1 | 30 | 0.0312” | 2” | 12’ | 0.243 | 20 |

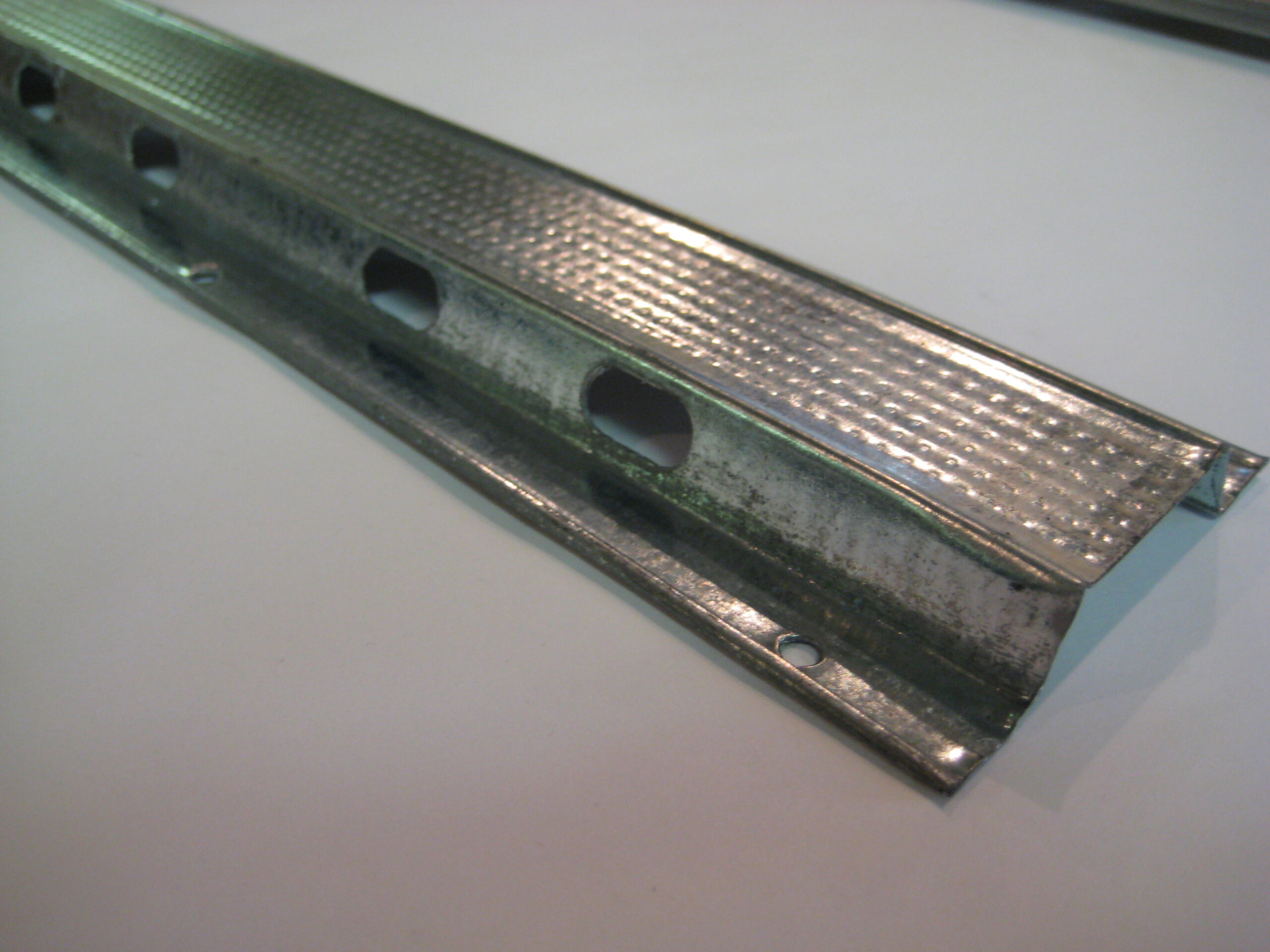

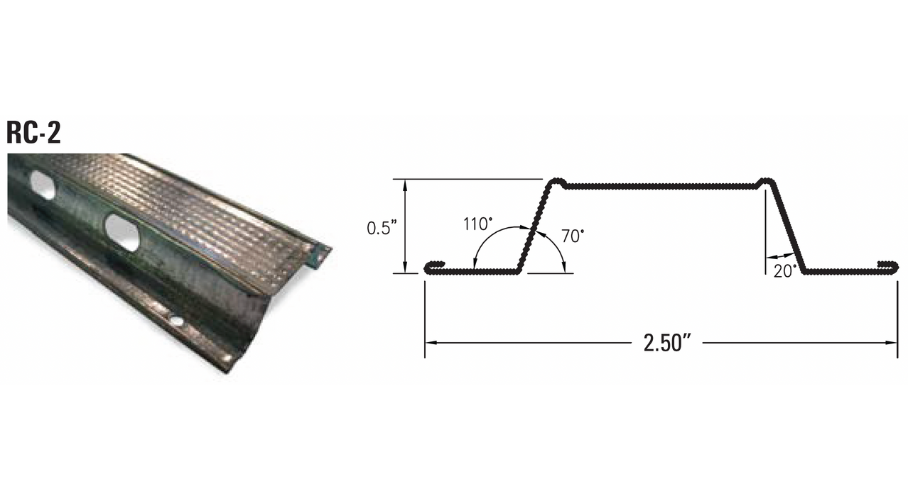

RC-2
USE: For furring over wood or steel framed walls and ceilings. Reduced contact with supporting members offers an economical means for reducing sound transmission. Refer to your Fire Resistance Design manual for STC ratings.
MATERIAL: RC-2 is 33 ksi G40, available in 20 & 25 gauge.
RC-2 has not been sound tested.
Model No. | Mils | Design Thickness | Size | Ft | Wt/Ft. | Bdl Qty |
RC-2 | 18 | 0.0188” | 2.5” | 12’ | 0.203 | 20 |
RC-2 | 30 | 0.0312” | 2.5” | 12’ | 0.330 | 20 |

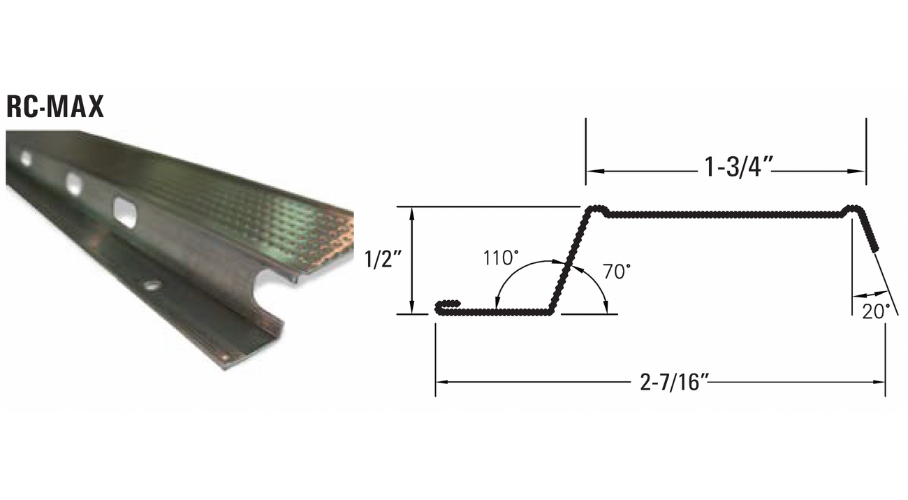

RC-MAX
USE: For furring over wood or steel framed walls and ceilings. Reduced contact with supporting members offers an economical means for reducing sound transmission. Refer to your Fire Resistance Design manual for STC ratings.
MATERIAL: RC-Max is a high strength RC-1 type Resilient Channel fabricated from 50 ksi, 0.0190” design thickness steel.
RC-Max exceeds the minimum 25 MSG generic requirements of UL assemblies.
Model No. | Mils | Design Thickness | Size | Ft | Wt/Ft. | Bdl Qty |
RC-Max | 18 | 0.0190” | 2-7/16” | 12’ | 0.233 | 20 |
