BRIDGING + BRACING
ClipSource is a comprehensive line of steel framing connectors thoughtfully designed to facilitate quicker, more cost-effective installation while assuring proper attachment.
Bridging and Bracing products help facilitate faster construction while preventing stud rotation.
- Order by 2:00 PM for same day shipment.
- Use the same PO for all orders.
- No minimum order quantities*.
- No freight charges*.
* Conditions and exclusions apply. Contact your Marino\WARE representative for details.
PRODUCT DETAILS
BRIDGERITE CLIP (BR)
Details
BridgeRite Clips are ready for use to attach cold rolled channel to wall studs. This easy-to-use clip will save time and money from having to cut longer length angles down to size.
MATERIAL: 16 ga (54) 50ksi
FINISH: Galvanized – G90
COILED STRAP (CS)
Details
SIMPSON Strong-Tie® CS are continuous utility straps which can be cut to length on the jobsite. Packaged in lightweight (about 40 pounds) cartons.
MATERIAL: 33 mil (20 ga), 43 mil (18 ga) & 54 mil (16 ga)
FINISH: Galvanized – G90
KATZ BLOCKING (KB)
Details

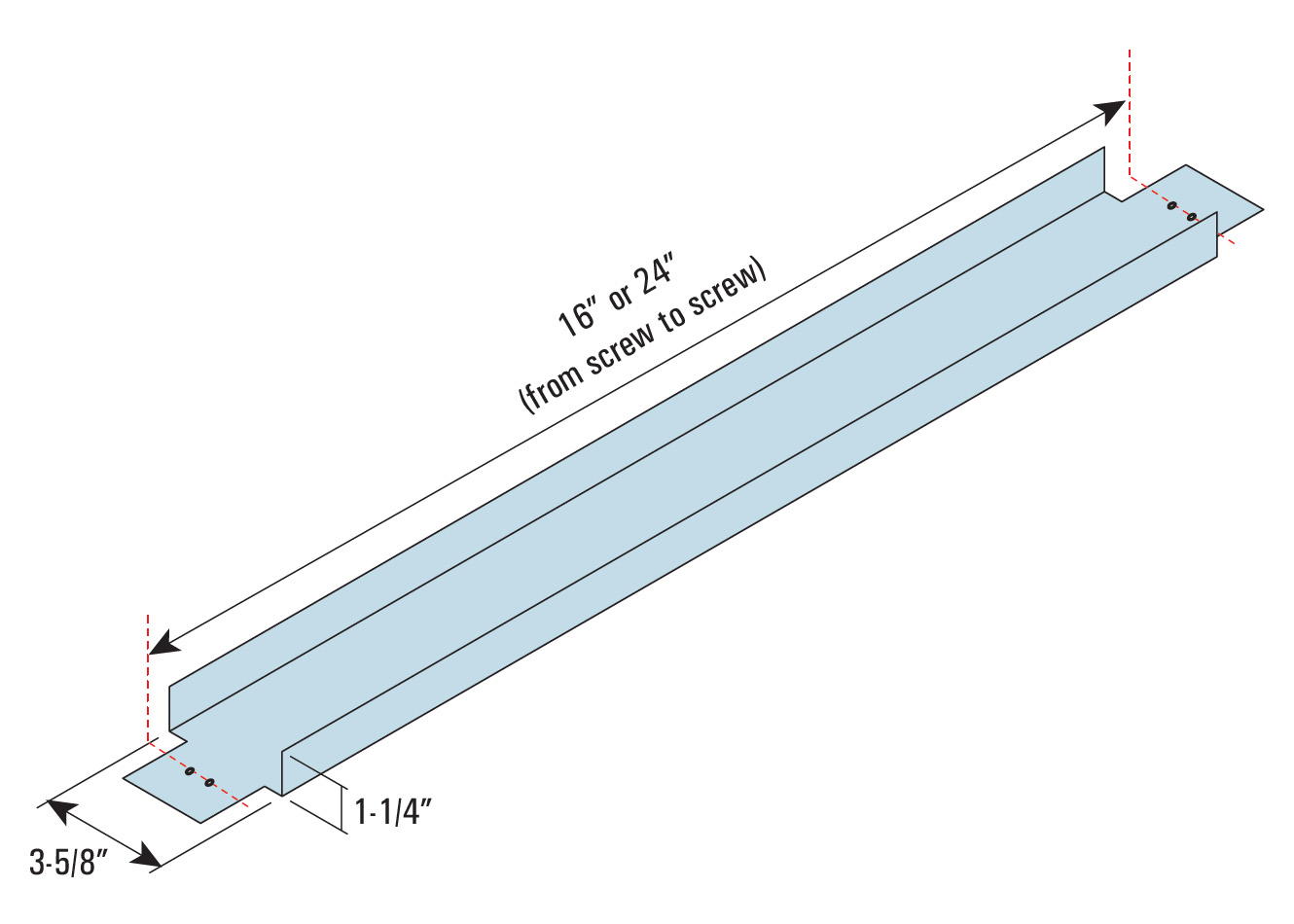

Katz Blocking has been designed to provide attachment between parallel framing members. Product is pre-punched to work in 16” and 24” spacing of parallel framing members of wood or steel.
MATERIAL:
18 ga (43 mil) 33ksi
20 ga (30 mil) 33ksi
25 ga (18 mil) 33ksi
FINISH: Galvanized – G40
SPACER BRACER (SBR + DBR)
Details
SIMPSON Strong-Tie® SBR and DBR spacer bracers reduce the installed cost of cold-formed steel stud walls by enabling faster stud layout while minimizing the need for bridging clips.
MATERIAL: SBR/43 — 43 mil (40 ksi)
DBR/30 — 27 mil (33 ksi)
FINISH: Galvanized (G90)
SUBH
Simplified Design and Installation Through Innovation
Simpson Strong-Tie® SUBH and MSUBH wall stud bridging connectors for cold-formed steel (CFS) framing offer a compact profile that allows standard 1 5/8” studs to be sistered directly against adjacent studs. The LSUBH connector provides the same installation benefits of the SUBH/MSUBH connectors, and is suitable for many wind-bearing and load-bearing situations where the load demand is light to moderate. Many applications require only one screw, greatly reducing labor costs and increasing productivity.
KEY FEATURES
- Tested to include stud-web strength and stiffness in the tabulated design values
- Design values ensure compliance with AISI S100 Sections D3.2.1 and D3.3 for axially and laterally loaded studs
- Flexible design solutions for web thicknesses of 33 mil (20 ga.) through 97 mil (12 ga.) and stud sizes from 3 5/8” to 8”
- SUBH and LSUBH accommodates single studs 33 mil (20 ga.) to 54 mil (16 ga.)
- MSUBH accommodates single studs 54 mil (16 ga.) to 97 mil (12 ga.) and back-to-back built-up members ranging from 33 mil (20 ga.) to 54 mil (16 ga.)
MATERIAL:
- LSUBH3.25 - 33 mil (20 ga.)
- SUBH3.25 - 43 mil (18 ga.)
- MSUBH3.25 - 68 mil (14 ga.)
FINISH: Galvanized (G90)
TENSION BRIDGING
Details
SIMPSON Strong-Tie® TB bridging is a cost effective way to provide bracing between floor joists when compared with field fabricated blocking and clip angles with multiple fasteners. TB is a tension-type bridging with maximum fastener flexibility. Use two #10 screws of the seven screw holes at each end.
MATERIAL: 20 ga (33 mil) 50 ksi
FINISH: Galvanized – G90
