JOIST FRAMING
ClipSource is a comprehensive line of steel framing connectors thoughtfully designed to facilitate quicker, more cost-effective installation while assuring proper attachment.
Marino\WARE offers a complete line of precut and sized of joist hangers, blocking, angles and web stiffeners. Predrilled for fast and easy fastener installation and available in a wide variety of sizes.
PRODUCT DETAILS

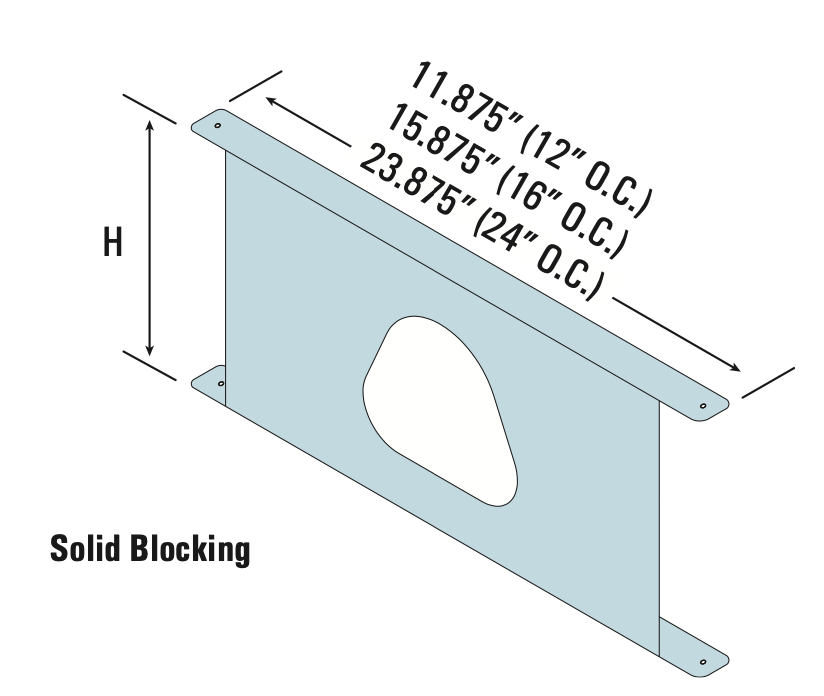

SOLID BLOCKING (JB)
Details
Blocking is pre-cut to fit securely between joists to prevent joist rotation. Blocking is a 1-piece system in lieu of the typical 3-piece detail offering an economical alternative to installing conventional clips and solid web members.
MATERIAL: 16 ga (54 mil) 50ksi
FINISH: Galvanized – G90
WEB STIFFENER (JS)
Details
Web Stiffeners are used to provide reinforcement of joist webs to prevent crippling. Web reinforcement is often required by design to enhance the load capacity of joists. Web stiffeners are installed on the inside or outside of the joist.
MATERIAL: 16 ga (54 mil) 50ksi
FINISH: Galvanized – G90
BH JOIST HANGER
Details
The BH Joist hanger is used to connect floor joists to the supporting structure.
GAUGE (MIL) YIELD: 12 (97) 50ksi
FINISH: Galvanized – G90
OPTIONS:
Single BH Hanger:
• W=2-1/8” for 2” Flange Joists
Double BH Hanger:
• W-4-1/4” for 2” Flange Joists
Tripple BH Hanger:
• W=6-3/8” for all 2” Flange Joists
UTILITY CLIP (UA) - 16/14/12 GAUGE
Details
Utility Clips are used in a variety of framing applications including floors, walls, and roofs. UA clips are pre-cut with pre-drilled holes for easy installation.
• Leg lengths available from 3-1/4” through 15-3/4”. (See table for exact sizes).
• Leg widths available in 1-1/2”, 2”, 3” and 4”.
• Available in 16, 14 and 12 gauge.
• Pre-punched for faster and more accurate fastener attachment.
• 3”x 3” Clips available (do not have embossments).
FINISH: Galvanized – G90
COILED STRAP (CS)
Details
SIMPSON Strong-Tie® CS are continuous utility straps which can be cut to length on the jobsite. Packaged in lightweight (about 40 pounds) cartons.
MATERIAL: 33 mil (20 ga), 43 mil (18 ga) & 54 mil (16 ga)
FINISH: Galvanized – G90
STEEL JOIST HANGER (S/HJCT)
Details
The increased thickness of the SIMPSON Strong-Tie® S/HJCT increases the allowable load capacity to use with joists. Joist can be attached from either side or doubled up. This hanger can be used with either steel or wood headers.
MATERIAL: 12 ga (97 mil) 50 ksi
FINISH: Galvanized – G90
This hanger is commonly used in framing systems with steel joists like JoistRite®.
