ClipSource is a comprehensive line of steel framing connectors thoughtfully designed to facilitate quicker, more cost-effective installation while assuring proper attachment.
Rigid connectors are pre-punched for fast and accurate screw placement. They are used in a variety of framing applications where fixed connections are required.
- Order by 2:00 PM for same day shipment.
- Use the same PO for all orders.
- No minimum order quantities*.
- No freight charges*.
* Conditions and exclusions apply. Contact your Marino\WARE representative for details.
PRODUCT DETAILS

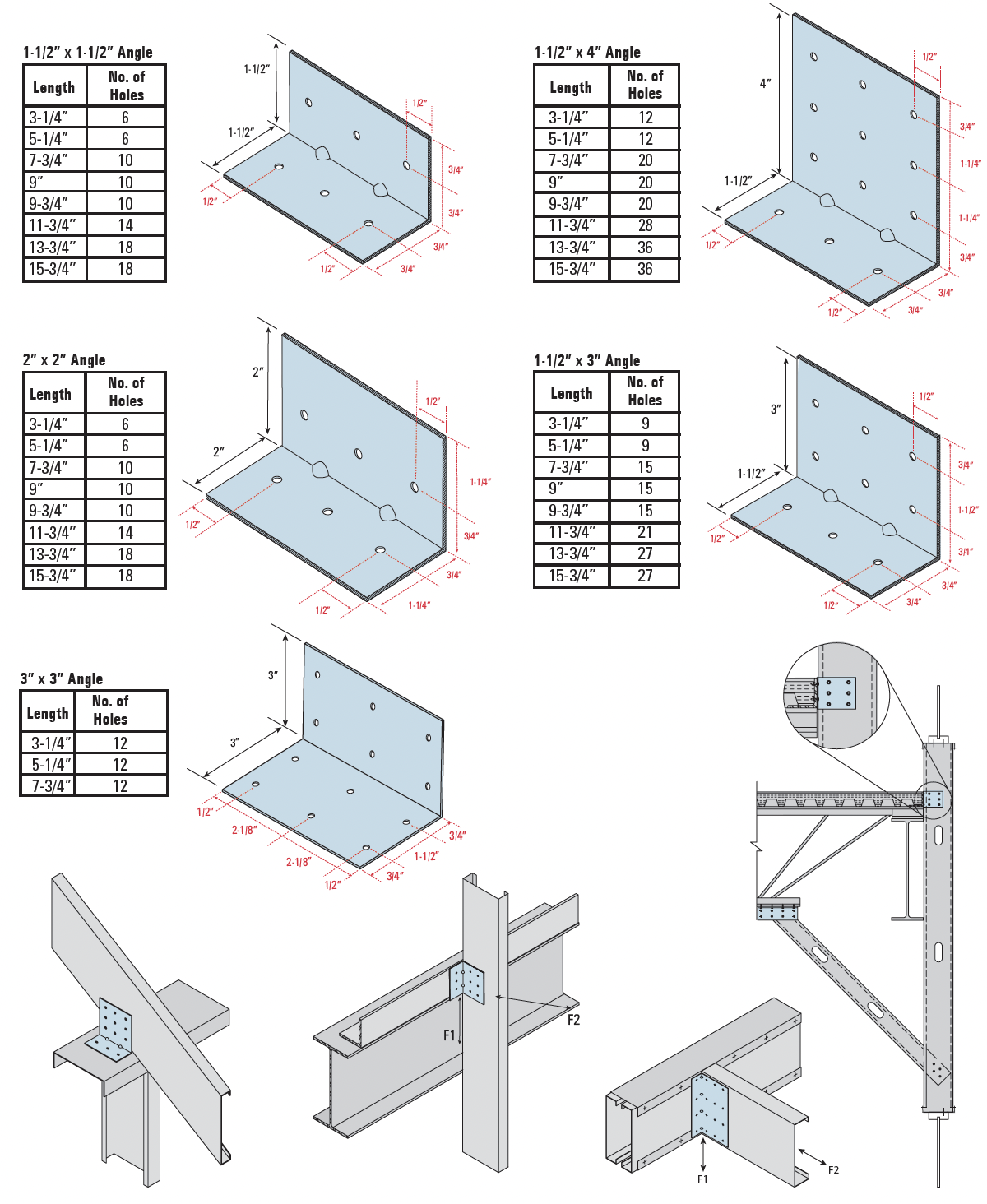

UTILITY CLIP (UA) - 16/14/12 GAUGE
Details
Utility Clips are used in a variety of framing applications including floors, walls, and roofs. UA clips are pre-cut with pre-drilled holes for easy installation.
- Leg lengths available from 3-1/4” through 15-3/4”.
- Leg widths available in 1-1/2”, 2”, 3” and 4”.
- Available in 16, 14 and 12 gauge.
- Pre-punched for faster and more accurate fastener attachment.
- 3”x 3” Clips available (do not have embossments).
FINISH: Galvanized – G90
LA CLIP (LARGE UTILITY CLIP)
Details
The LA series of clip angles is a series of rigid clips used in a variety of framing applications. Pre-drilled for ease of installation.
FINISH: Galvanized – G90
RIGID CLIP CONNECTOR (RCC) + HEAVY DUTY WASHER (HDW)
Details
Rigid Clip Connectors (RCC) are used to rigidly attach the bottom of a parapet stud to the structure, or where high tension or rotational restrain is required.
MATERIAL:
RCC - 12ga (97 mil), 50 ksi
Heavy Duty Washer (HDW) - 1/4” Carbon Structural Steel Hot Rolled , 36 ksi
FINISH:
RCC - Galvanized G90
HDW - Painted gray for corrosion resistance
WRC RIGID CLIP
Details
The WRC series of clips connects exterior studs to the building structure and resists horizontal and lateral loads. The WRC has embossments and a continuous flange to allow for excellent load values. 25 pieces per box.
MATERIAL: 14ga (68 mil), 50 ksi
FINISH: Galvanized G90
GUSSET PLATE (UNPUNCHED)
Details
Designed for a variety of construction connections. Used for conditions such as roof, wall and floor framing connections. GP Plate is used for in-plane truss chord connections, header-to-jamb connections and tension strap connections. Adapts to varying construction tolerances.
FINISH: Galvanized coating weight as requested.
