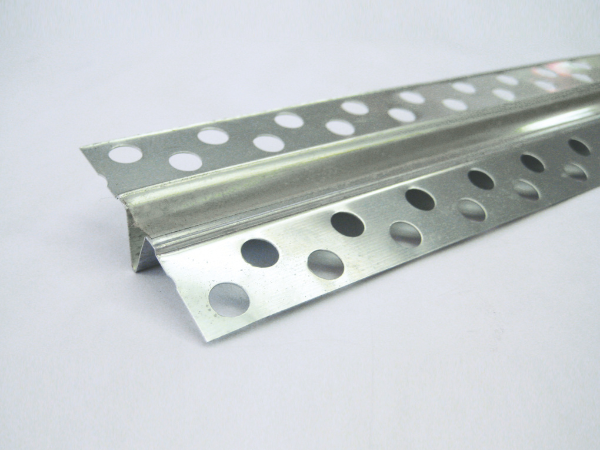

FAS-093X

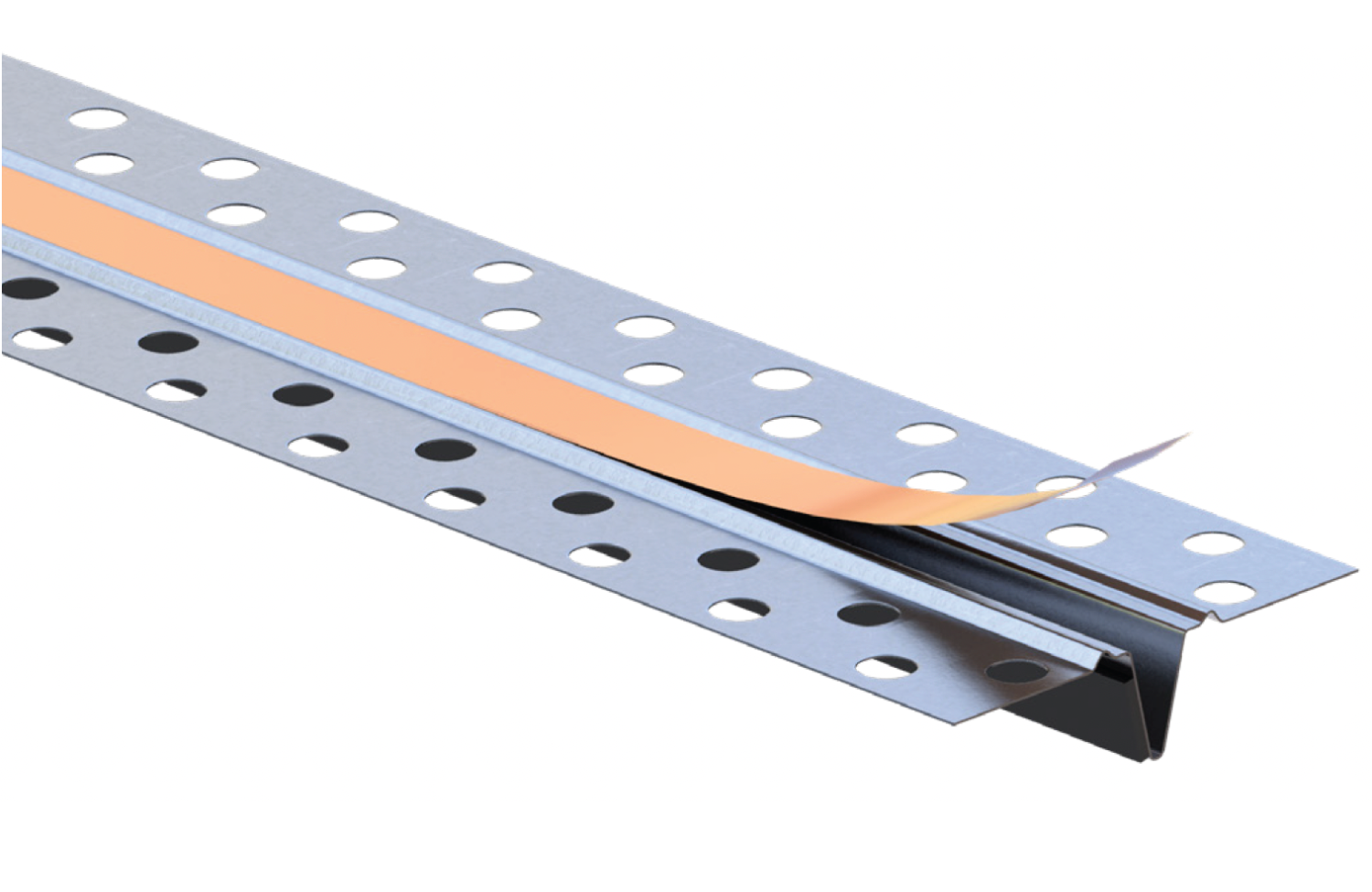

FAS-093X is a composite control joint constructed of metal with an integrated intumescent strip that provides fire, smoke, and sound rated solutions in vertical and horizontal control joints.

It is used to relieve expansion and contraction stress within interior drywall partitions requiring vertical or horizontal control joints in gypsum wall.

Can be used in INTERIOR drywall partitions
Has integrated mud legs for attachment and adhesion of joint compounds
Does not require drywall rips, fire sealant, or mineral wool backing within the wall cavity
Provides an aesthetically pleasing reveal with integrated groove
Drywall fasteners through the perforated holes are to be used on both flanges
V-groove is protected removable plastic film
Can be used in metal or wood stud wall assemblies
Installs fully cured, unaffected by water, moisture, or temperature
Paintable
Provides 1 hr and 2 hr fire rating from the same profile

ASTM C1047, A653
ASTM A1003 Grade 33 Type H
ASTM E 1966: Standard Test Method of Fire Tests of Firestop Systems for 1 and 2 hour wall assemblies
UL ER25033-01
UL 2079 Tests for Fire Resistance of Building Joints
ASTM E-119 Standard Test Methods for Fire Tests of Building Construction and Material
Sound Tested in accordance with ASTM E90-09
Air leakage tests conducted for compliance with Section 713.6 of IBC and CBC
IBC: 2012, 2015, 2018, 2021
CBC: 2013, 2016, 2019
AISI: S100, S220

View Code Evaluation Report
