FAS Track 1000

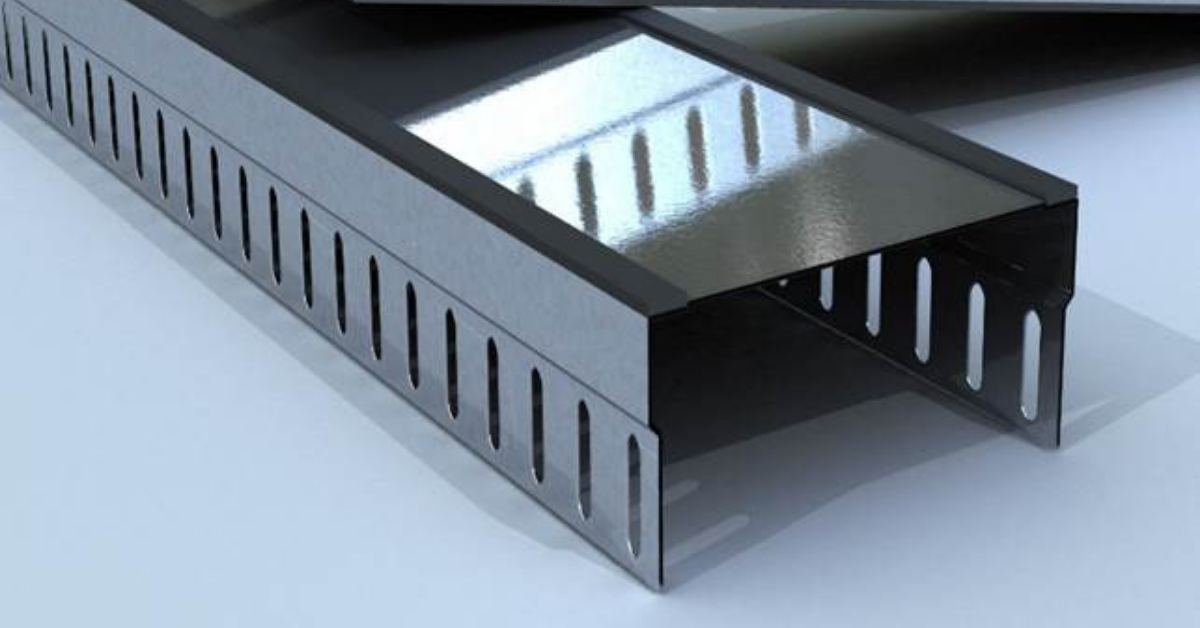

FAS Track 1000 is a slotted deflection track that offers fire and air (smoke) protection, eliminating the need for fire and sound sealant.
FAS Track 1000 DL is a deflection track with 1/2” intumescent Tape that offers fire and air (smoke) protection, eliminating the need for fire and sound sealant.
The FAS Track 1000 section is fabricated from hot-dipped galvanized steel complying with ASTM A653, and ASTM A1003 Grade 33 Type H for 33 ksi yield strength steel for 20 gauge (33 mils) with a minimum G40 coating complying with ASTM A924, and 18 gauge (43 mils) with a minimum G60 coating complying with ASTM A924; and Grade 50 Type H for 50 ksi yield strength steel for 16 gauge (54 mils) with a minimum G60 coating complying with ASTM A924. FAS Track 1000 has been tested with Underwriters Laboratories in accordance with UL 2079.
- FAS Track provides 3/4″ joint protection for fluted deck or concrete
- Tested for air leakage for compliance with the IBC
- Sound tested to ASTM E90
FAS Track 1000 for use in Joint System Nos.:
HW-D-0514, HW-D-0518, HW-D-0524, HW-D-0550, HW-D-0551, HW-D-0553, HW-D-0554, HW-D-0573, HW-D-0620, HW-D-0624, HW-D-0652, WW-D-0104
FAS Track 1000 DL for use in Joint System No.:
HW-D-0514, HW-D-0518, HW-D-0524, HW-D-0550, HW-D-0551, HW-D-0553, HW-D-0573, HW-D-0620, HW-D-0624, HW-D-0652
- MR Prerequisite: Construction and Demolition Waste Management Planning
- MR: Credit: Construction and Demolition Waste Management
- MR Credit: Building Product Disclosure and Optimization – Sourcing of Raw Materials, Option 2
- MR Credit_ Building Product Disclosure and Optimization – Environmental Product Declarations, Options 1 & 2
- MR Credit: Building Product Disclosure and Optimization – Material Ingredients, Option 1
- MR Credit: Building Life-Cycle Impact Reduction, Option 4
SEE THE VALUE
PRODUCT DETAILS
FAS J-TRACK
FAS J-Track has longer legs than a standard J-Runner to provide greater deflection at the head-of-wall joint. FAS J-Track provides 3/4” overall unencumbered movement providing the best possible L-Rating (smoke) for 1 hr and 2 hr fire ratings. FAS J-Track also eliminates the installation of fire caulking of additional drywall rips. FAS J-Track is manufactured in 33mil thick G40 hotdipped galvanized steel. G60 and G90 are available only upon special request and will require extended lead-times.
FAS TRACK 1000 BOTTOM TRACK (BT)
FAS Track BT 1000 is a bottom track that offers fire and air (smoke) protection, eliminating the need for fire and sound sealant. The section is fabricated from hot-dipped galvanized steel complying with ASTM A653, and ASTM A1003 Grade 33 Type H for 33 ksi yield strength steel for 20 gauge (30 mils) with a minimum G40 coating complying with ASTM A924, and 18 gauge (43 mils) with a minimum G60 coating complying with ASTM A924; and Grade 50 Type H for 50 ksi yield strength steel for 54 mil (16 gauge) with a minimum G60 coating complying with ASTM A924.
FAS TRACK 1000 DEEP LEG (DL)
FAS Track 1000 DL is a deflection track with 1/2” intumescent Tape that offers fire and air (smoke) protection, eliminating the need for fire and sound sealant. The section is fabricated from hot-dipped galvanized steel complying with ASTM A653, and ASTM A1003 Grade 33 Type H for 33 ksi yield strength steel for 20 gauge (33 mils) with a minimum G40 coating complying with ASTM A924, and 18 gauge (43 mils) with a minimum G60 coating complying with ASTM A924; and Grade 50 Type H for 50 ksi yield strength steel for 16 gauge (54 mils) with a minimum G60 coating complying with ASTM A924. FAS Track 1000 DL has been tested with Underwritten Laboratories in accordance with UL 2079.
