HotRod® TYPE X

HOTROD® Type X

HOTROD® Type-X is a compressible intumescent fire stop tested to UL 2079.

HOTROD Type-X provides 1 hr and 2 hr firestop solutions in building joints for both standard wall and shaft wall.

It has been tested on flat concrete or fluted metal deck applications.

Tested with up to 80% compression and 33% extension
Red in color for easy identification during inspection process
Installed at fluted deck, does not require use of additional firestop sealant or spray over mineral wool flute fillers

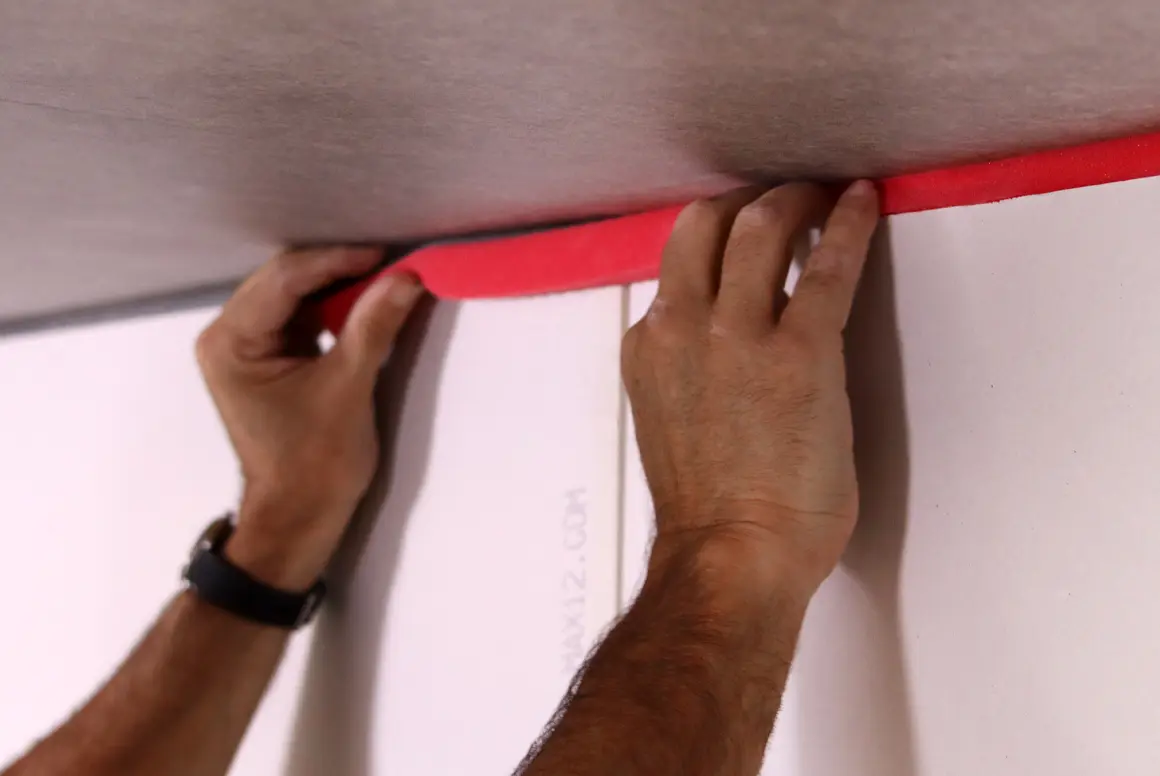

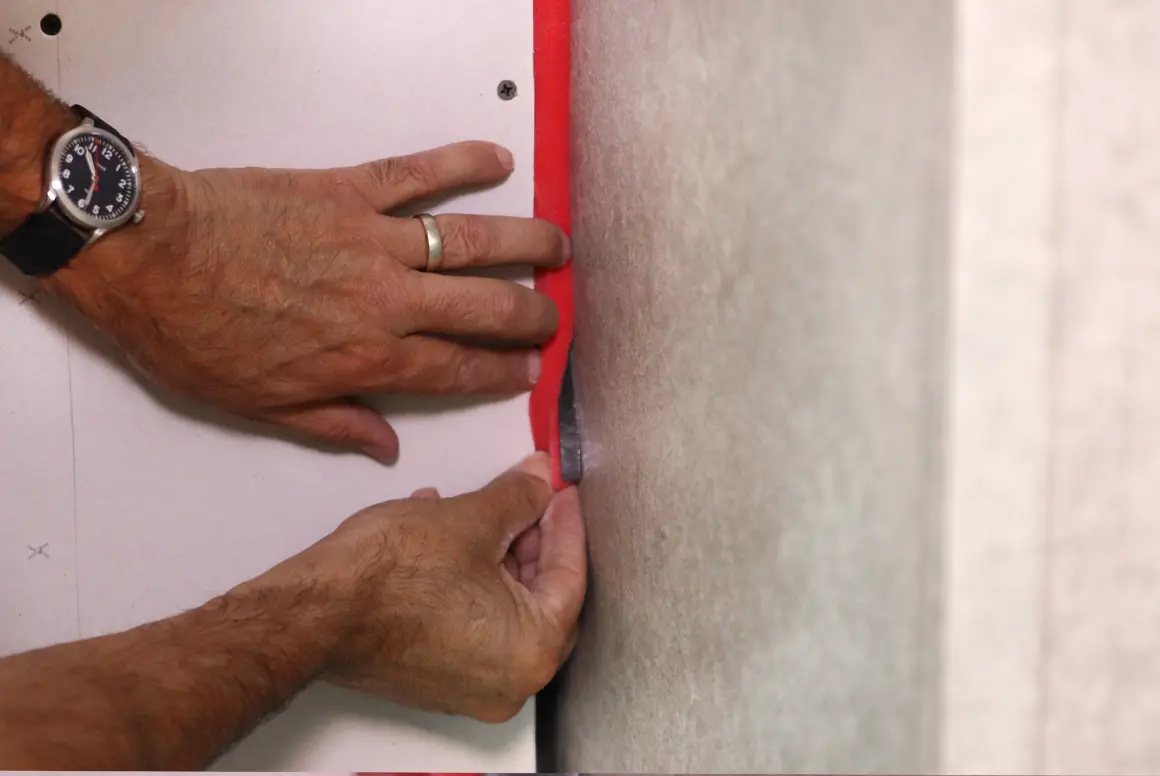

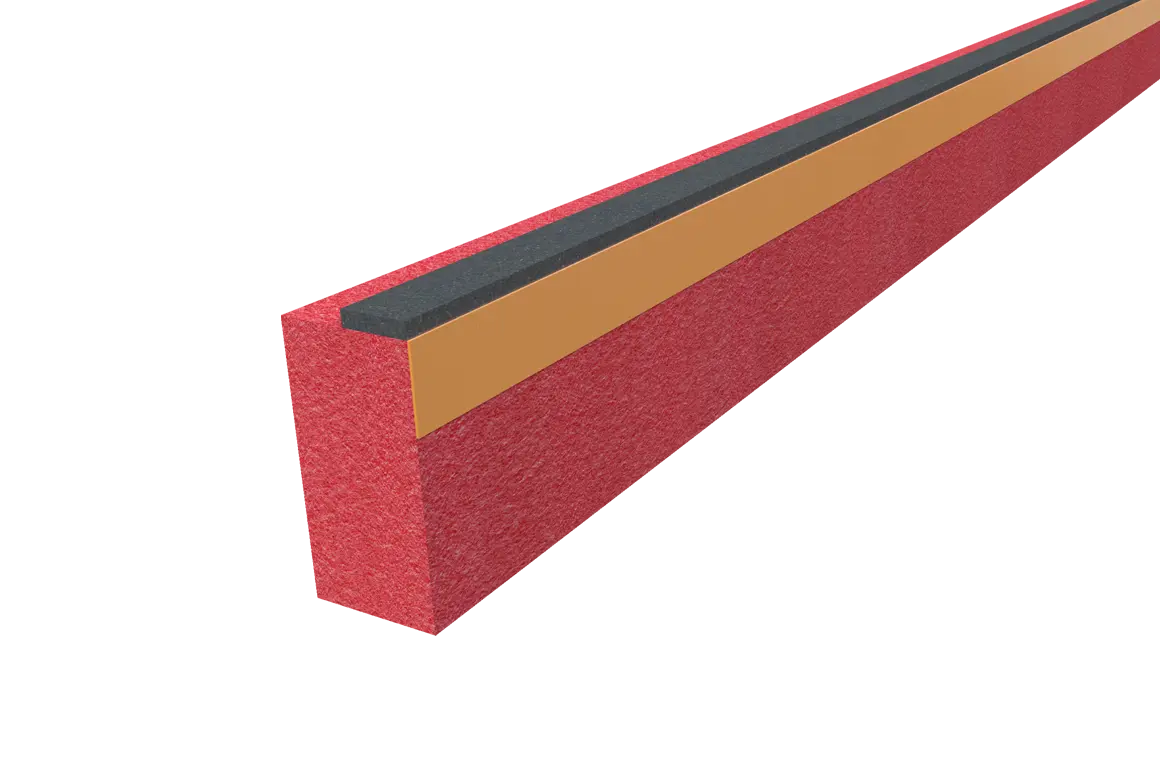

Has a rectangular profile and is easily installed by compressing it into the gap between the drywall and surrounding structure

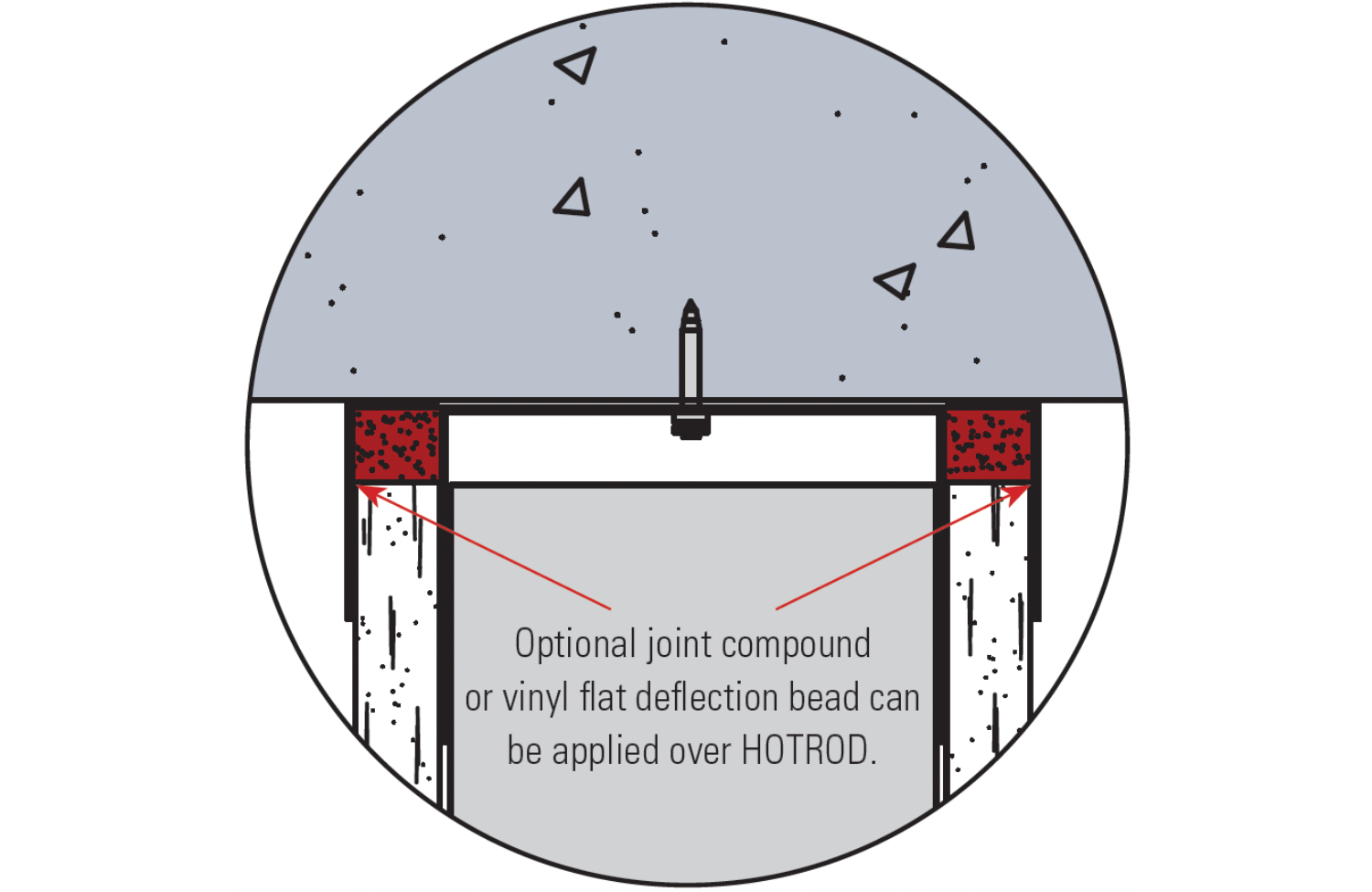

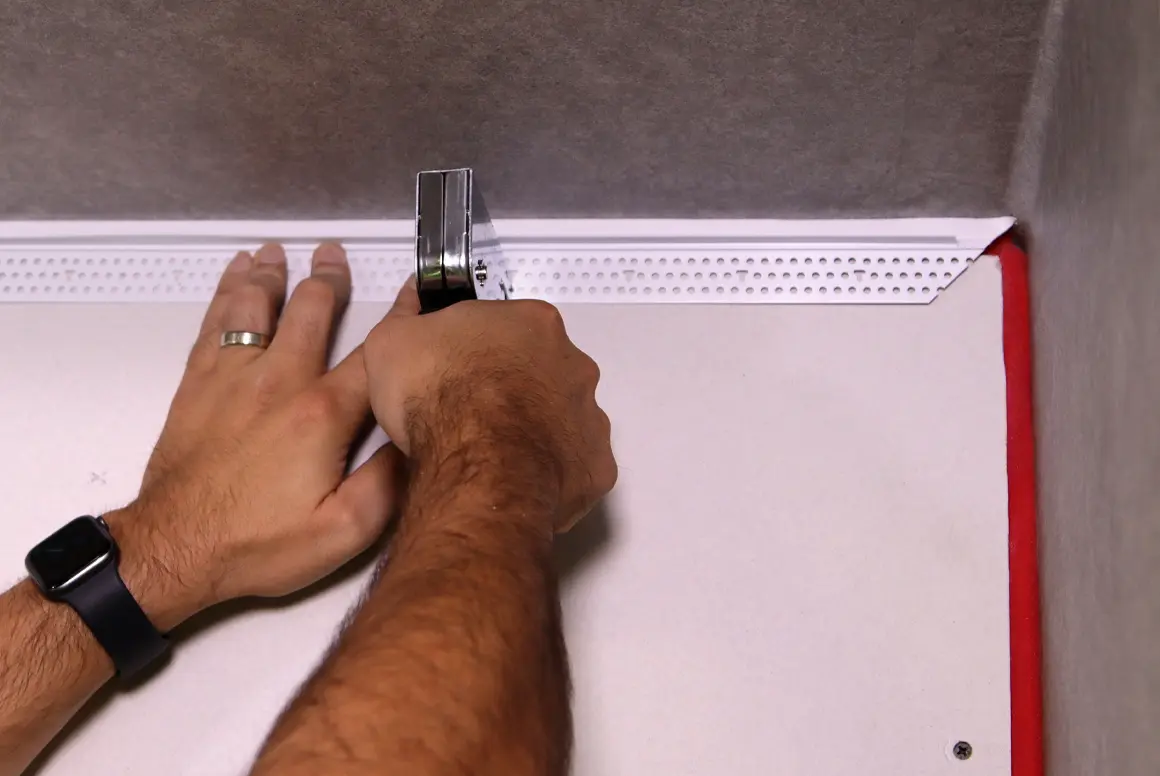

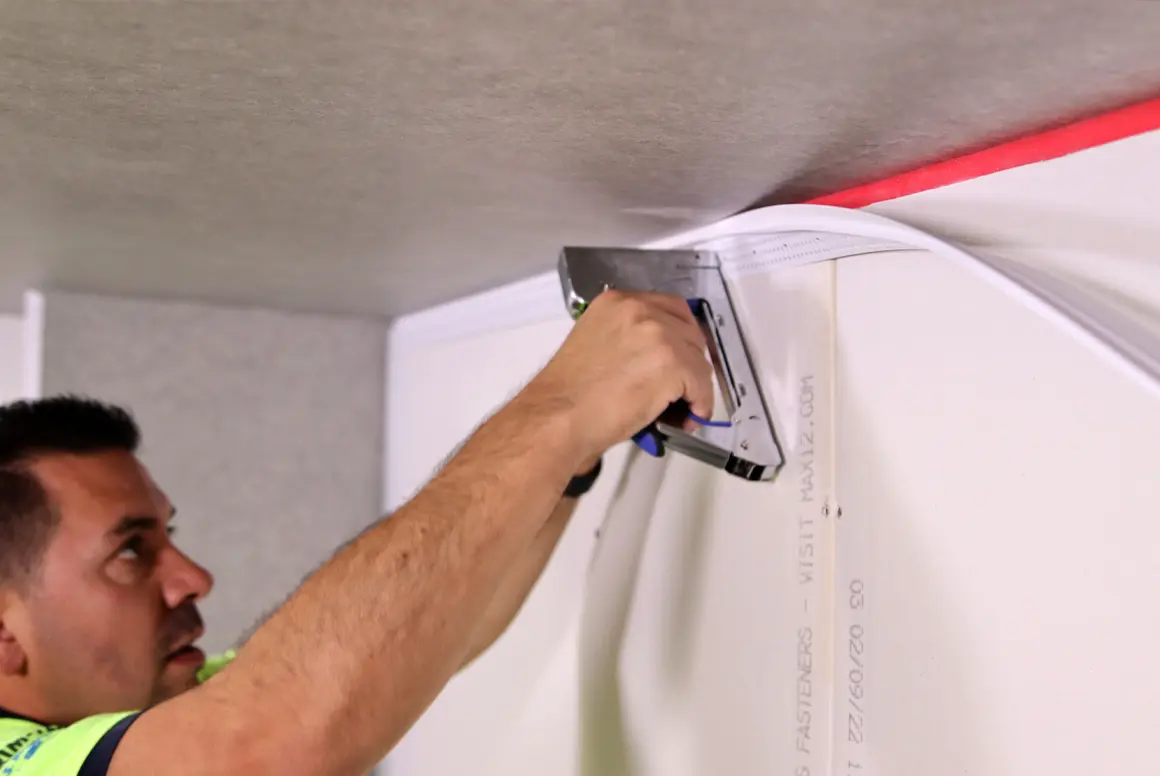

Can be installed and left exposed or covered with tape and joint compound in exposed applications
Over time, it does not shrink, harden, or separate from surrounding substrate
Provides unlimited shelf life when stored indoors and kept dry in the original package
Optional double-sided tape for easy installation to the track or stud flange
For use in assemblies with STC ratings up to 68

ASTM E-84 ASTM E-90 ASTM E-119 ASTM E-1966
UL 263 UL 723 UL 2079 5th Edition Cal State Fire (BML) 1451-2376:0003 UL ER25033-01
L-Rating (air leakage) testing for compliance with International Building Code (IBC) and Canadian Building Code (CBC).
UL listings for concrete or solid substrates require HOTROD Type-X listed under: BW-S-0024; HW-D-0550; HW-D-0554; HW-D-0624; HW-D-0625; HW-S-0128; WW-D-0104; WW-S-0057; WW-S-0094
UL listings for fluted decks and I-beams require HOTROD Type-X RS listed under: HW-D-0514; HW-D-0518; HW-D-0524; HW-D-0525; HW-D- 0551; HW-D-0553; HW-D-0573; HW-D-0620; HW-D-0652
U.S. Patent No. 9,683,364; 10,184,246; and 11,060,283

Provides BOTH 1 hr and 2 hr fire ratings with both 1/2” x 1” and 1” x 1” profiles.

HOT ROD TYPE X for use in Joint System Nos.:
