HotRod® XL

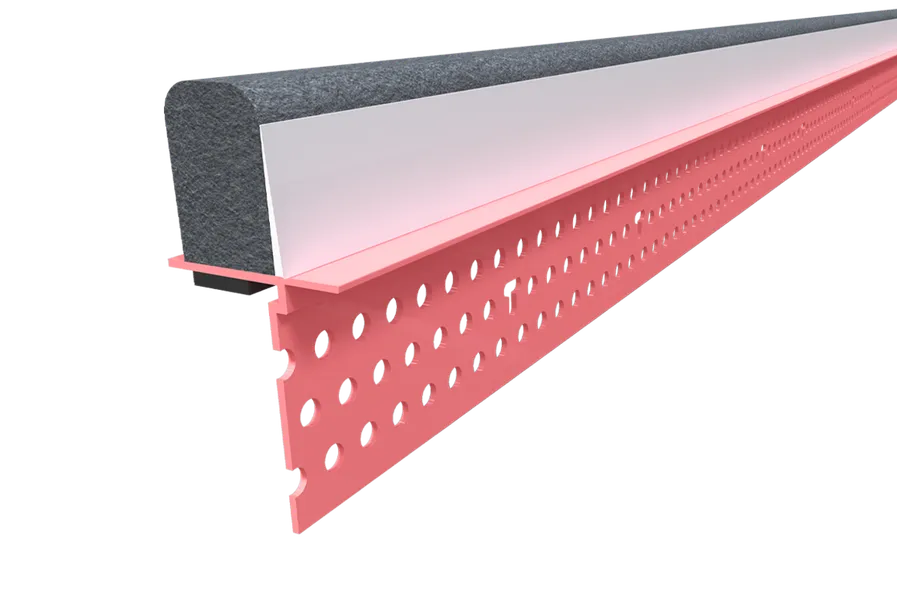

HOTROD® XL is a surface mounted fire-rated deflection bead tested to UL 2079. It provides 1 hr and 2 hr firestop solutions in joints for both standard wall and shaft wall types between flat concrete or fluted metal deck applications.
HOTROD XL provides 1/2″ nominal joint protection, utilizing firestopping technology to halt the passage of smoke, fire, and sound.

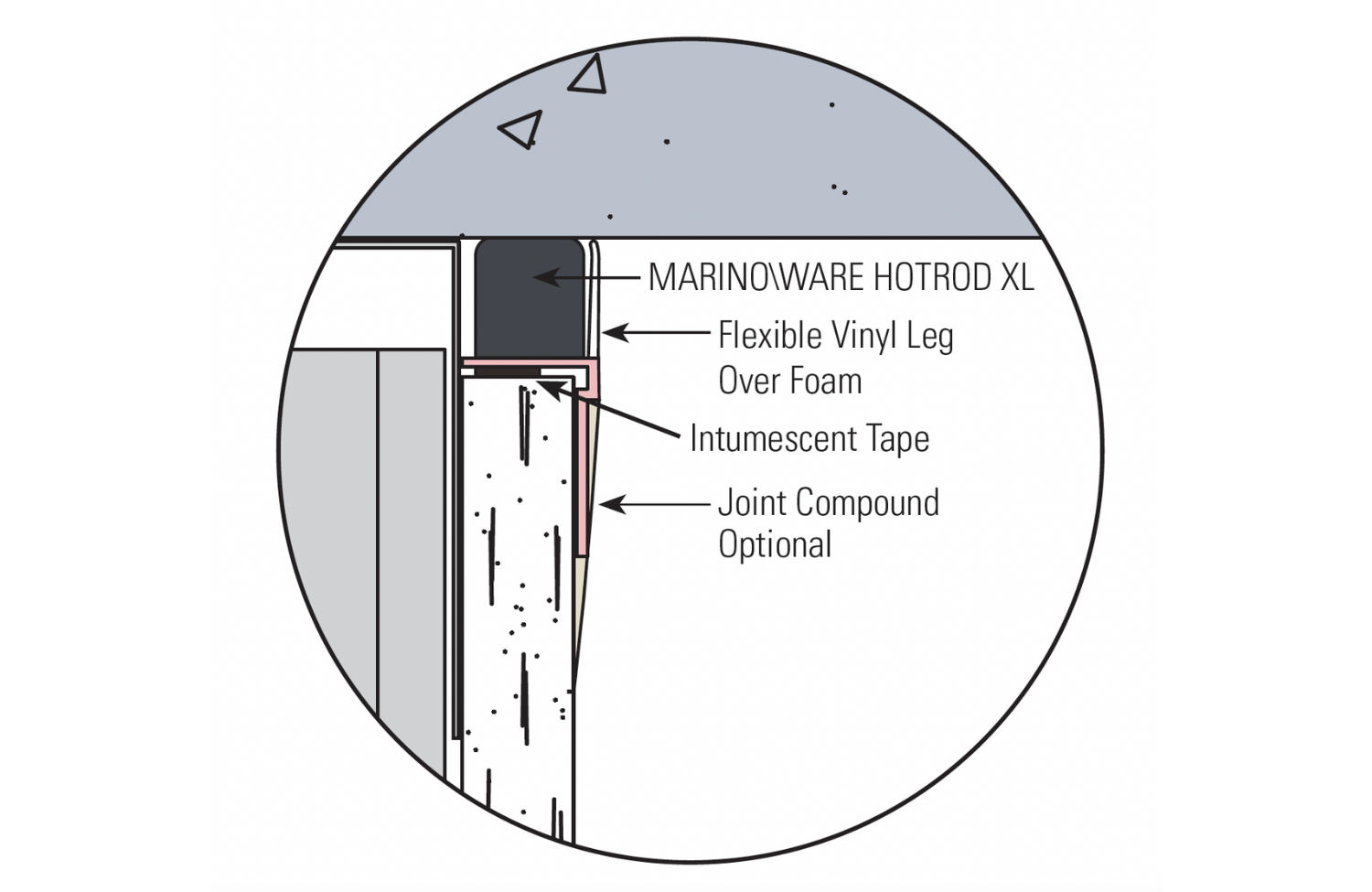

This solution combines a flat deflection bead with compressible foam and intumescent tape for a perfect seal along head-of-wall joints, providing a full 3/4″ of building movement.

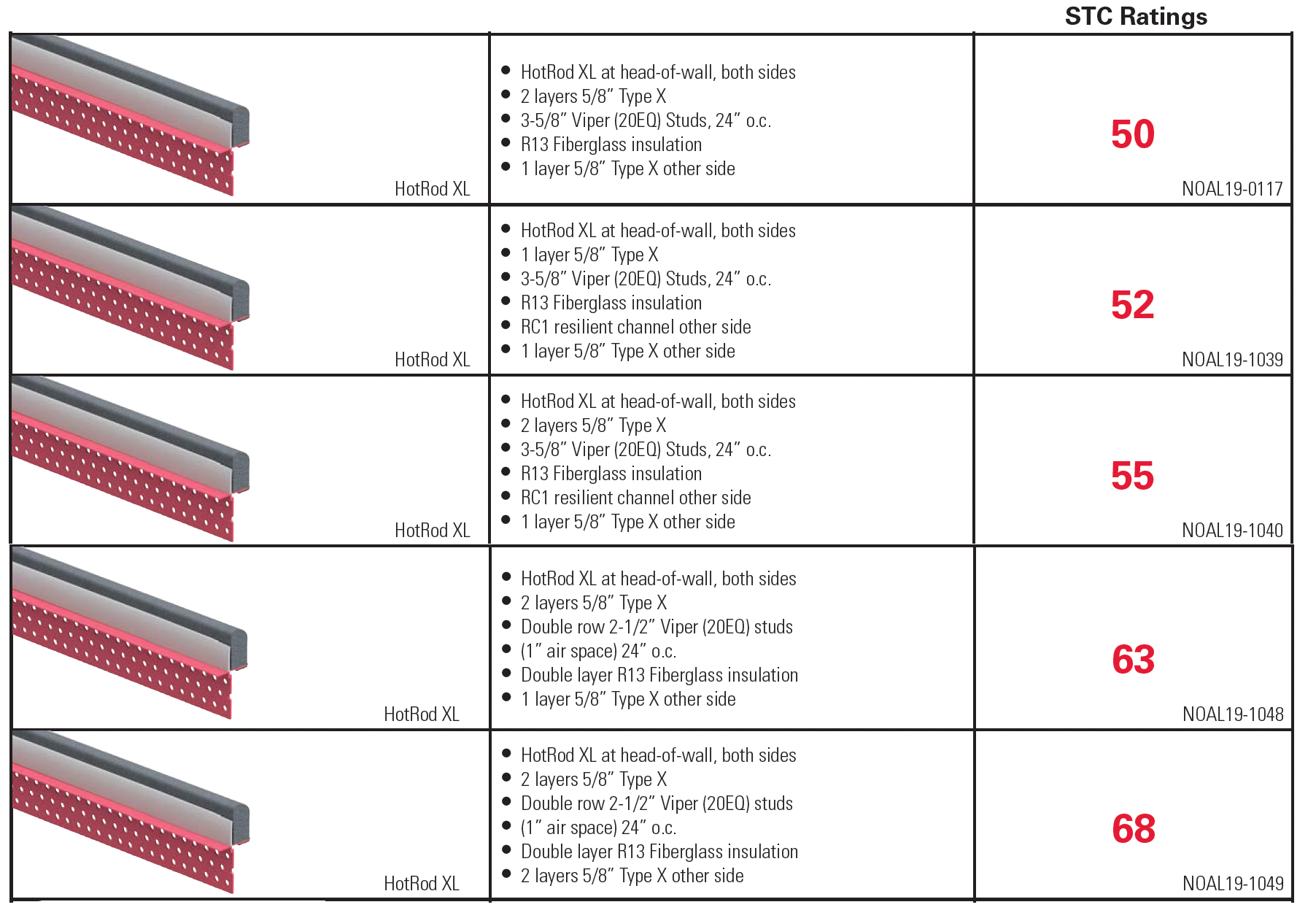

Additionally, it is sound tested according to ASTM E90, with test reports available. It is tested in assemblies up to a STC 68.
- Tested with up to 80% compression and 30% extension
- Pink perforated mud leg for ease of inspection
- Provides a single step installation of both a code compliant firestop and finished drywall accessory in one piece

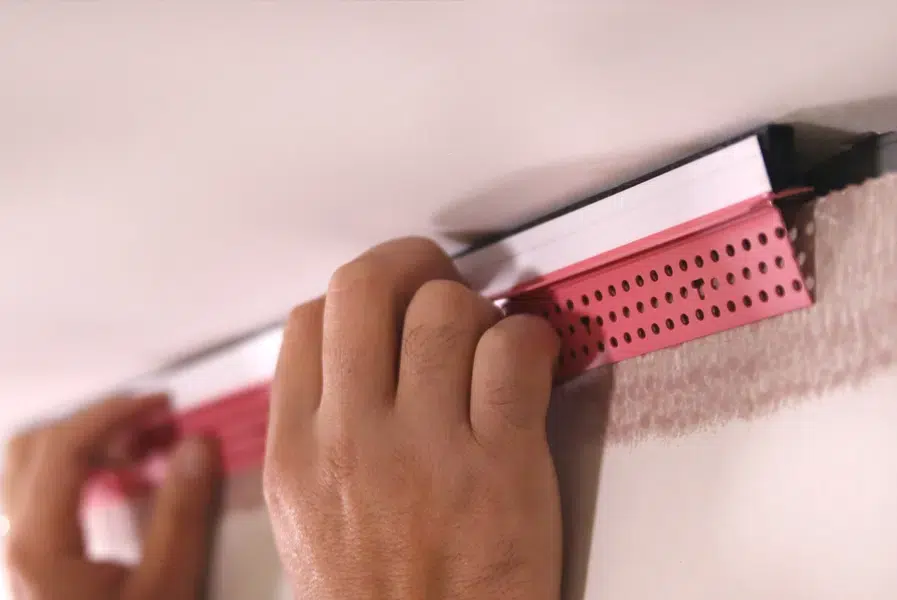

- Easily installs using spray adhesive and staples
- Installs on the face of the drywall with a perforated mud leg incorporated to accept joint compound
- Combines compressible foam, a vinyl concealment leg, and an intumescent strip to provide an aesthetically pleasing joint
- Installs fully cured and does not have temperature or humidity limits for installation
- Provides unlimited shelf life when stored indoors and kept dry in the original package
- Paintable
- L-rating less than 1 CFM/Ln Ft
- For use in assemblies with STC ratings up to 68
ASTM E-84 ASTM E-90 ASTM E-119 ASTM E-1966
UL 263 UL 723 UL 2079 5th Edition Cal State Fire (BML) 1451-2376:0003 UL ER25033-01
L-Rating (air leakage) testing for compliance with International Building Code (IBC) and Canadian Building Code (CBC).
UL listings/approvals include: BW-S-0024; HW-D-0550; HW-D-0554; HW-D-0621; HW-D-0624; HW-D-0625; HW-S-0128; WW-S-0057; WW-S- 0094
U.S. Patent No. 9,683,364; 10,184,246; and 10,914,065
When stored indoors and kept dry in the original package, HOTROD XL will provide unlimited shelf life.
