RBR STRAP

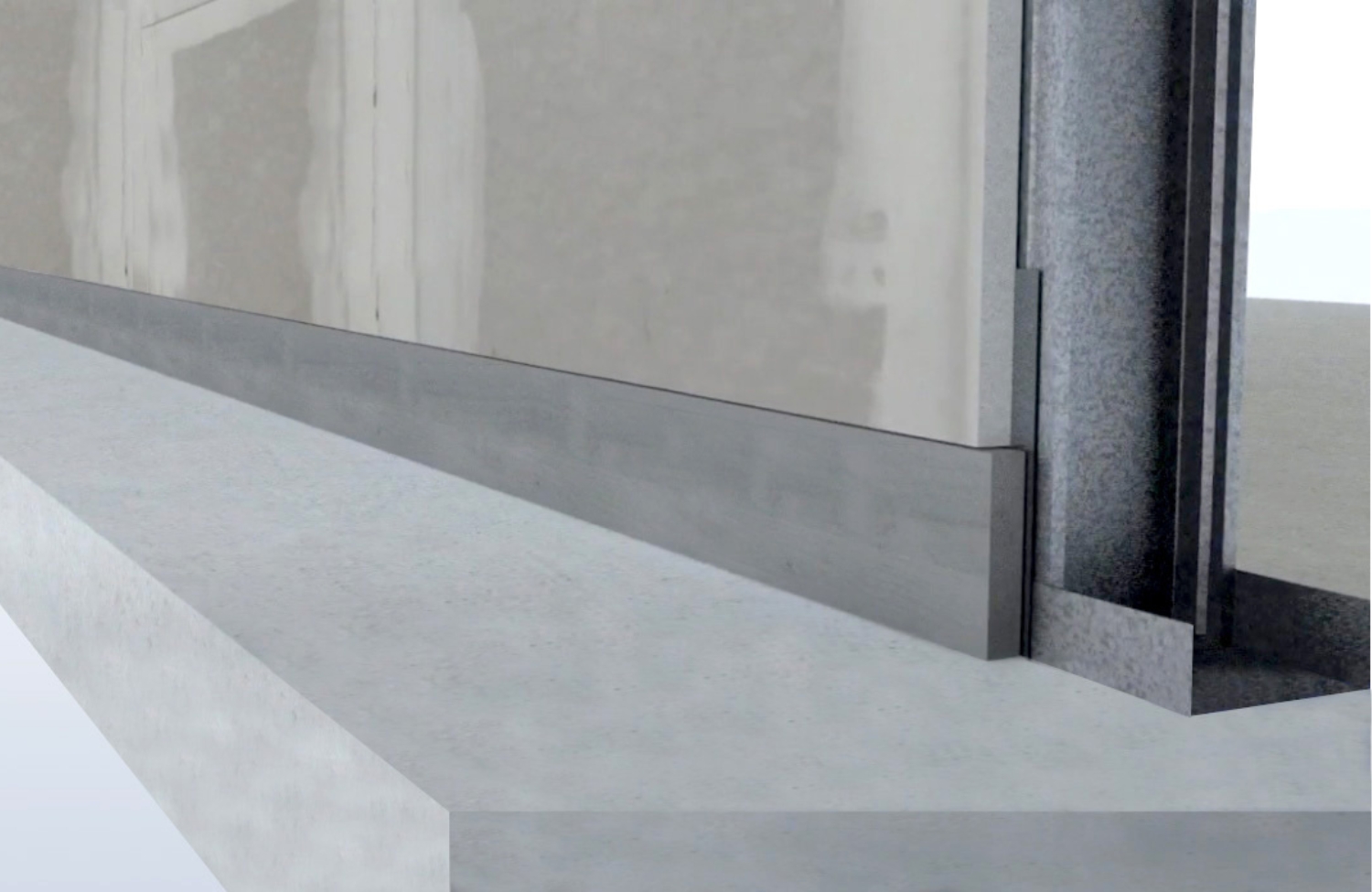

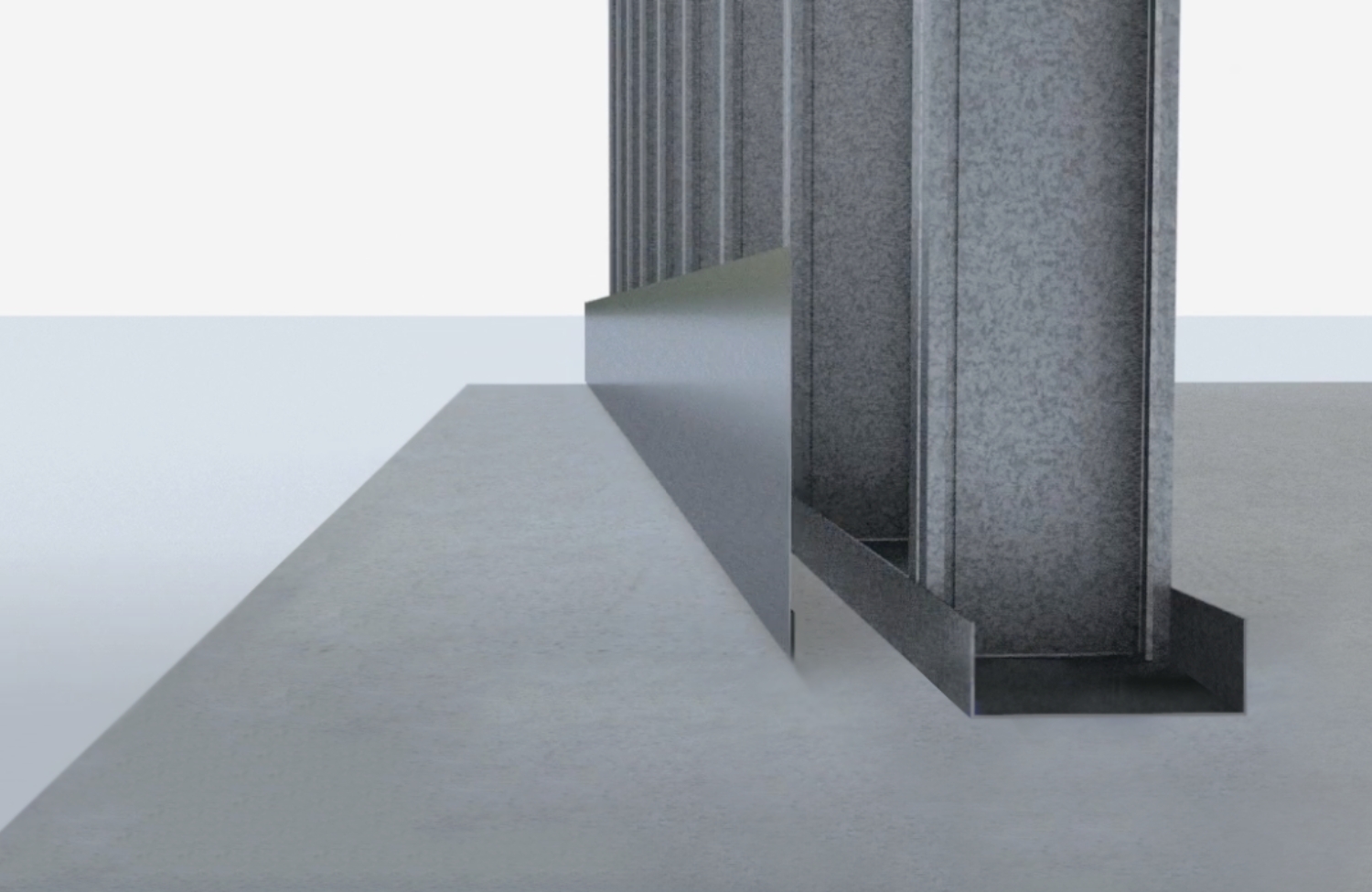

RATED BASE REVEAL (RBR) STRAP is a preformed galvanized steel strap with an intumescent strip that provides a fire and smoke rated solution for recessed base boards, flush mounted to the face of the wall.
RBR Strap eliminates the need for a second layer of drywall, thus reducing in-place cost when recessed base boards or a reveal is desired.
- Eliminates the need for a second layer of drywall when recessed base boards or a reveal is desired
- Tested for air leakage for compliance with the IBC
- AISI S100, AISI S220
- ASTM A653, ASTM A924, ASTM A1003, ASTM C645, ASTM E-84, ASTM E-119, ASTM E-1966
- UL 263, UL 723, UL 2079 5th Edition, UL ER25033-01
- L-Rating (air leakage) testing for compliance with International Building Code (IBC) and Canadian Building Code (CBC)
- UL listings/approvals include: BW-S-0036
- U.S. Patent No. 9,752,318 B2
RBR Strap for use in Joint System No.:
When stored indoors and kept dry in the original package, RBR Strap will provide unlimited shelf life.
- Total Recycled Content: 36.9%
- Post-Consumer: 19.8%
- Pre-Consumer: 14.4%
PRODUCT DETAILS
FAS J-TRACK
FAS J-Track has longer legs than a standard J-Runner to provide greater deflection at the head-of-wall joint. FAS J-Track provides 3/4” overall unencumbered movement providing the best possible L-Rating (smoke) for 1 hr and 2 hr fire ratings. FAS J-Track also eliminates the installation of fire caulking of additional drywall rips. FAS J-Track is manufactured in 33mil thick G40 hotdipped galvanized steel. G60 and G90 are available only upon special request and will require extended lead-times.
FAS TRACK 1000 BOTTOM TRACK (BT)
FAS Track BT 1000 is a bottom track that offers fire and air (smoke) protection, eliminating the need for fire and sound sealant. The section is fabricated from hot-dipped galvanized steel complying with ASTM A653, and ASTM A1003 Grade 33 Type H for 33 ksi yield strength steel for 20 gauge (30 mils) with a minimum G40 coating complying with ASTM A924, and 18 gauge (43 mils) with a minimum G60 coating complying with ASTM A924; and Grade 50 Type H for 50 ksi yield strength steel for 54 mil (16 gauge) with a minimum G60 coating complying with ASTM A924.
FAS TRACK 1000 DEEP LEG (DL)
FAS Track 1000 DL is a deflection track with 1/2” intumescent Tape that offers fire and air (smoke) protection, eliminating the need for fire and sound sealant. The section is fabricated from hot-dipped galvanized steel complying with ASTM A653, and ASTM A1003 Grade 33 Type H for 33 ksi yield strength steel for 20 gauge (33 mils) with a minimum G40 coating complying with ASTM A924, and 18 gauge (43 mils) with a minimum G60 coating complying with ASTM A924; and Grade 50 Type H for 50 ksi yield strength steel for 16 gauge (54 mils) with a minimum G60 coating complying with ASTM A924. FAS Track 1000 DL has been tested with Underwritten Laboratories in accordance with UL 2079.
