SMOKE & SOUND STOP BLUE (SSSB)
Smoke & Sound Stop Blue (SSSB) is a compressible foam providing smoke and sound abatement for both dynamic and static joints. It is for use at interior building joints in non-fire-rated partitions requiring a STC rating.
- Can be used in head of wall, bottom of wall and wall to wall joints
- Light blue in color for easy identification during inspection process

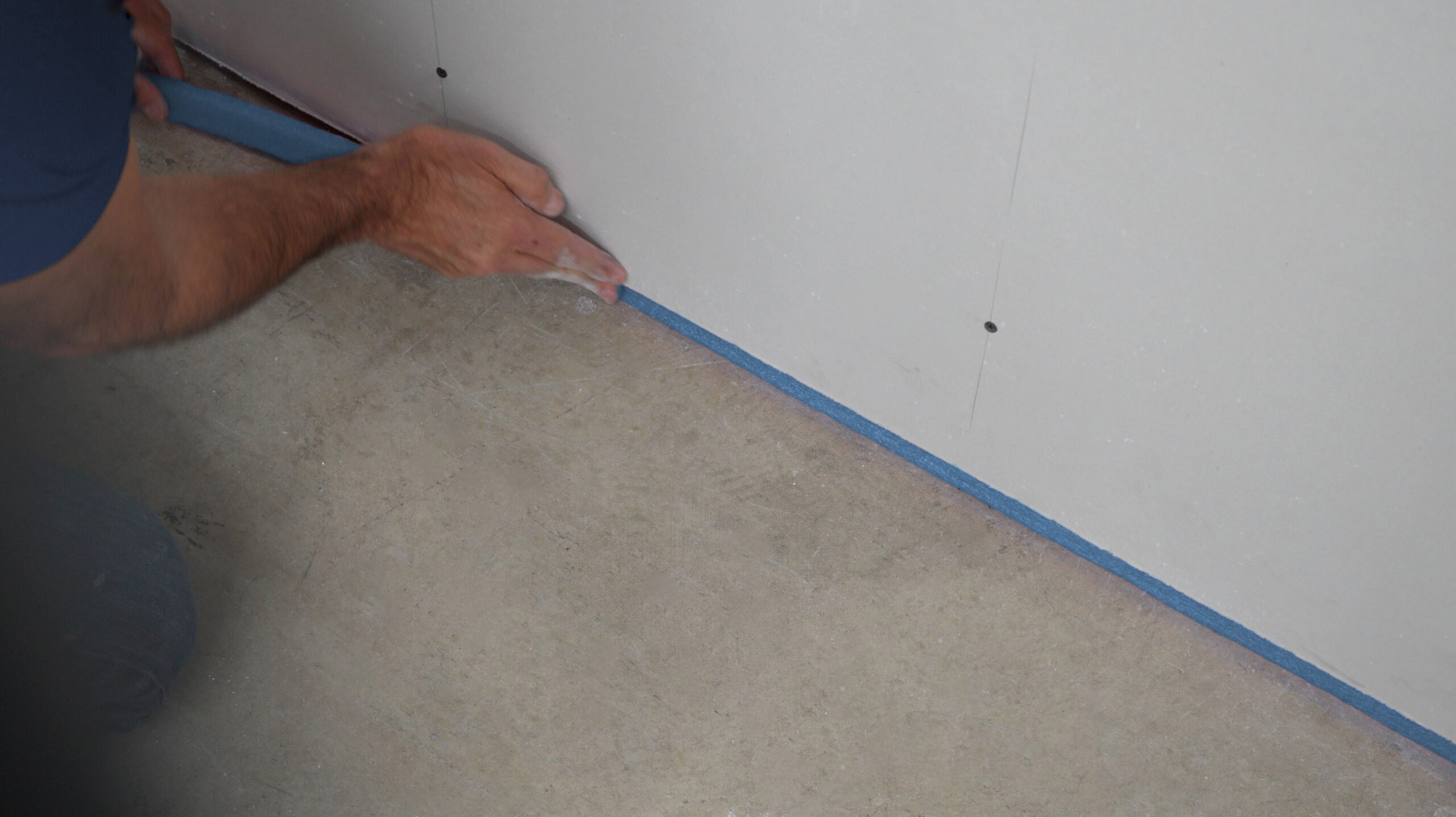

- Easily installed by compressing it into the gap between the drywall and surrounding structure
- Unaffected by water/moisture/temperature
- Odorless, installs fully cured, and will not stain surrounding substrate
- Remains flexible for the life of the building joint
- Provides up to 1/2″ of compression and extension.
- Provides unlimited shelf life when stored indoors and kept dry in the original package
- Tested for air leakage for compliance with the IBC and CBC
- ASTM E-84, ASTM E-90, ASTM G-21
- L-Rating (air leakage) testing for compliance with International Building Code (IBC) and Canadian Building Code (CBC)
- U.S. Patent Pending
When stored indoors and kept dry in the original package, Smoke and Sound Stop Blue (SSSB) will provide unlimited shelf life.
PRODUCT DETAILS
FAS J-TRACK
FAS J-Track has longer legs than standard J-Runner to provide greater deflection at the head-of -wall joint. FAS J-Track provides 3/4” overall unencumbered movement providing the best possible L-Rating (smoke) for 1 hr and 2 hr fire ratings. FAS J-Track also eliminates the installation of fire caulking of additional drywall rips. FAS J-Track is manufactured in 33mil thick G40 hotdipped galvanized steel. G60 and G90 are available only upon special request and will require extended lead-times.
FAS TRACK 1000 BOTTOM TRACK (BT)
FAS Track BT 1000 is a bottom track that offers fire and air (smoke) protection, eliminating the need for fire and sound sealant. The section is fabricated from hot-dipped galvanized steel complying with ASTM A653, and ASTM A1003 Grade 33 Type H for 33 ksi yield strength steel for 20 gauge (30 mils) with a minimum G40 coating complying with ASTM A924, and 18 gauge (43 mils) with a minimum G60 coating complying with ASTM A924; and Grade 50 Type H for 50 ksi yield strength steel for 54 mil (16 gauge) with a minimum G60 coating complying with ASTM A924.
FAS TRACK 1000 DEEP LEG (DL)
FAS Track 1000 DL is a deflection track with 1/2” intumescent Tape that offers fire and air (smoke) protection, eliminating the need for fire and sound sealant. The section is fabricated from hot-dipped galvanized steel complying with ASTM A653, and ASTM A1003 Grade 33 Type H for 33 ksi yield strength steel for 20 gauge (33 mils) with a minimum G40 coating complying with ASTM A924, and 18 gauge (43 mils) with a minimum G60 coating complying with ASTM A924; and Grade 50 Type H for 50 ksi yield strength steel for 16 gauge (54 mils) with a minimum G60 coating complying with ASTM A924. FAS Track 1000 DL has been tested with Underwritten Laboratories in accordance with UL 2079.
