SUPER SEAL-X
SUPER SEAL-X is a surface mounted deflection bead tested to UL 2079.
It provides 1 hr and 2 hr firestop solutions in vertical joints for both standard wall and shaft wall types between dissimilar material applications.
- Tested with up to 50% compression
- Available in all black and pink vinyl with white bubble gasket

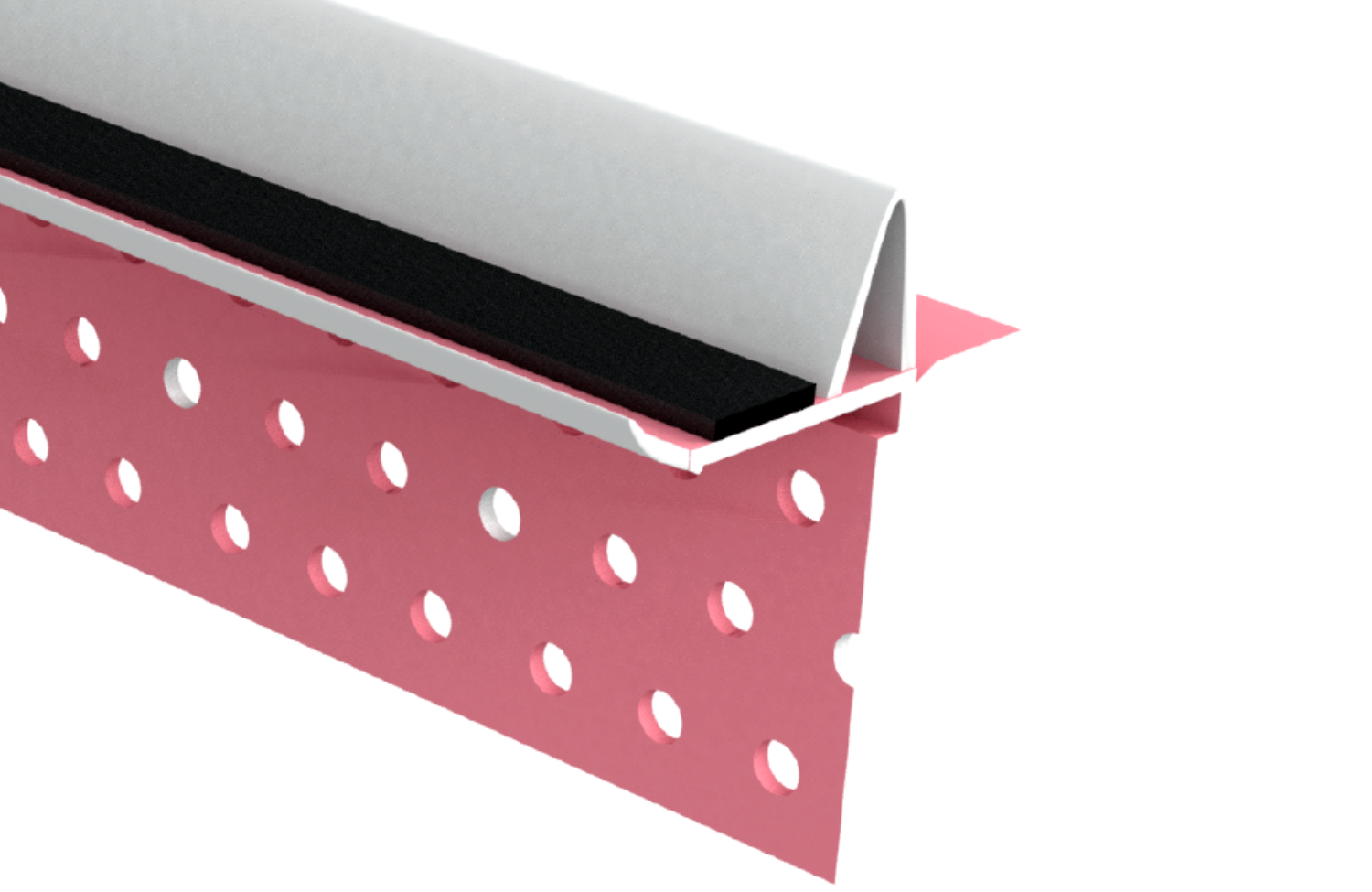

- Combines a vinyl bubble gasket, a perforated mud leg, and intumescent strip to provide an aesthetically pleasing joint when in an exposed location
- Provides a single step installation of both a code compliant firestop and finished drywall accessory in a single component
- Easily installs using spray adhesive and staples
- Installs on the face of the drywall with a perforated mud leg incorporated to accept joint compound
- Can be used in top-of-wall, bottom-of-wall, and vertical joints
- Installs fully cured, unaffected by water, moisture, or temperature
- Remains flexible for the life of the assembly
- Provides unlimited shelf life when stored indoors and kept dry in the original package
- Paintable
- Tested for air leakage for compliance with the IBC
- Tested in STC-rated assembly

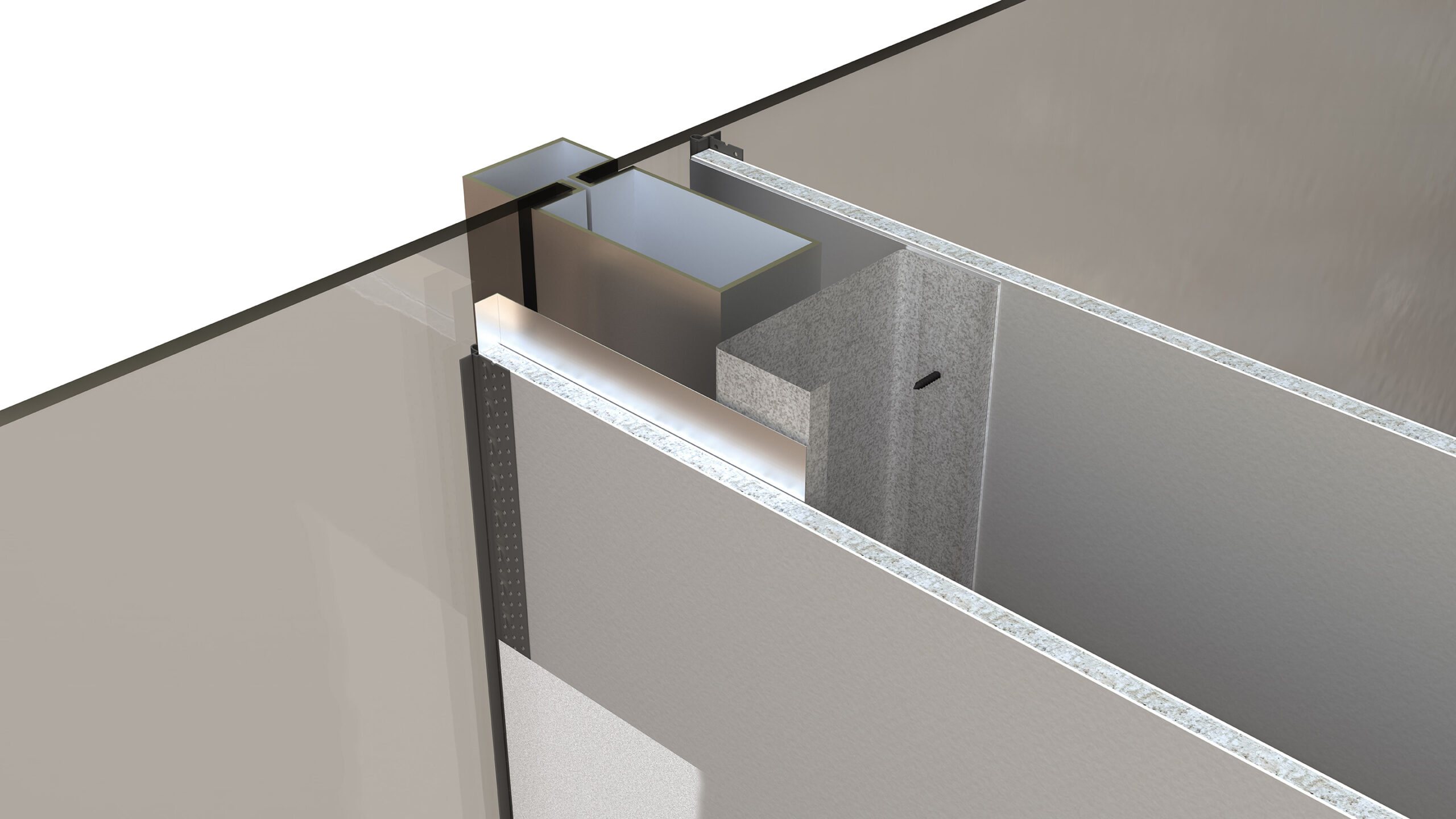

- Tested over vertical window aluminum mullions WW-D-0182
ASTM E-84, ASTM E-90 ASTM E-119, ASTM E-1966
UL 263, UL 723, UL 2079 5th Edition, UL ER25033-01
L-Rating (air leakage) testing for compliance with International Building Code (IBC) and Canadian Building Code (CBC)
UL listings/approvals include: BW-S-0024; HW-D-0550, HW-D-0554; HW-D-0624; HW-S-0128; WW-D-0104; WW-D-0172; WW-D-0182
U.S. Patent No. 11,111,666; 11,873,636
Provides BOTH 1 hr and 2 hr fire ratings from the same profile.
When stored indoors and kept dry in the original package, SUPER SEAL-X will provide unlimited shelf life.
