GENIECLIP® RST

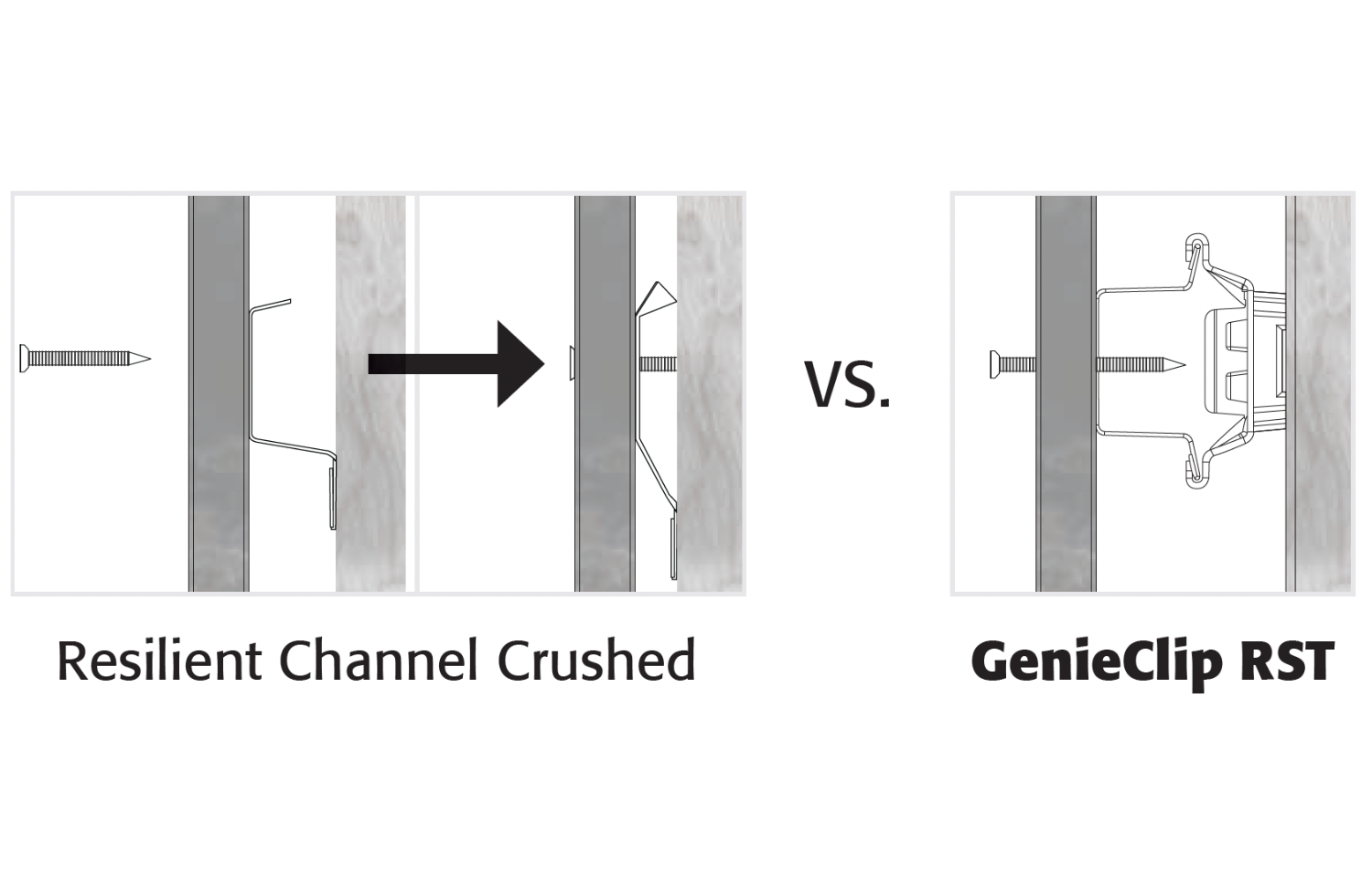

GenieClip RST is engineered for superior acoustical performance in reducing the transmission of airborne and impact sound through wall and floor-ceiling assemblies.

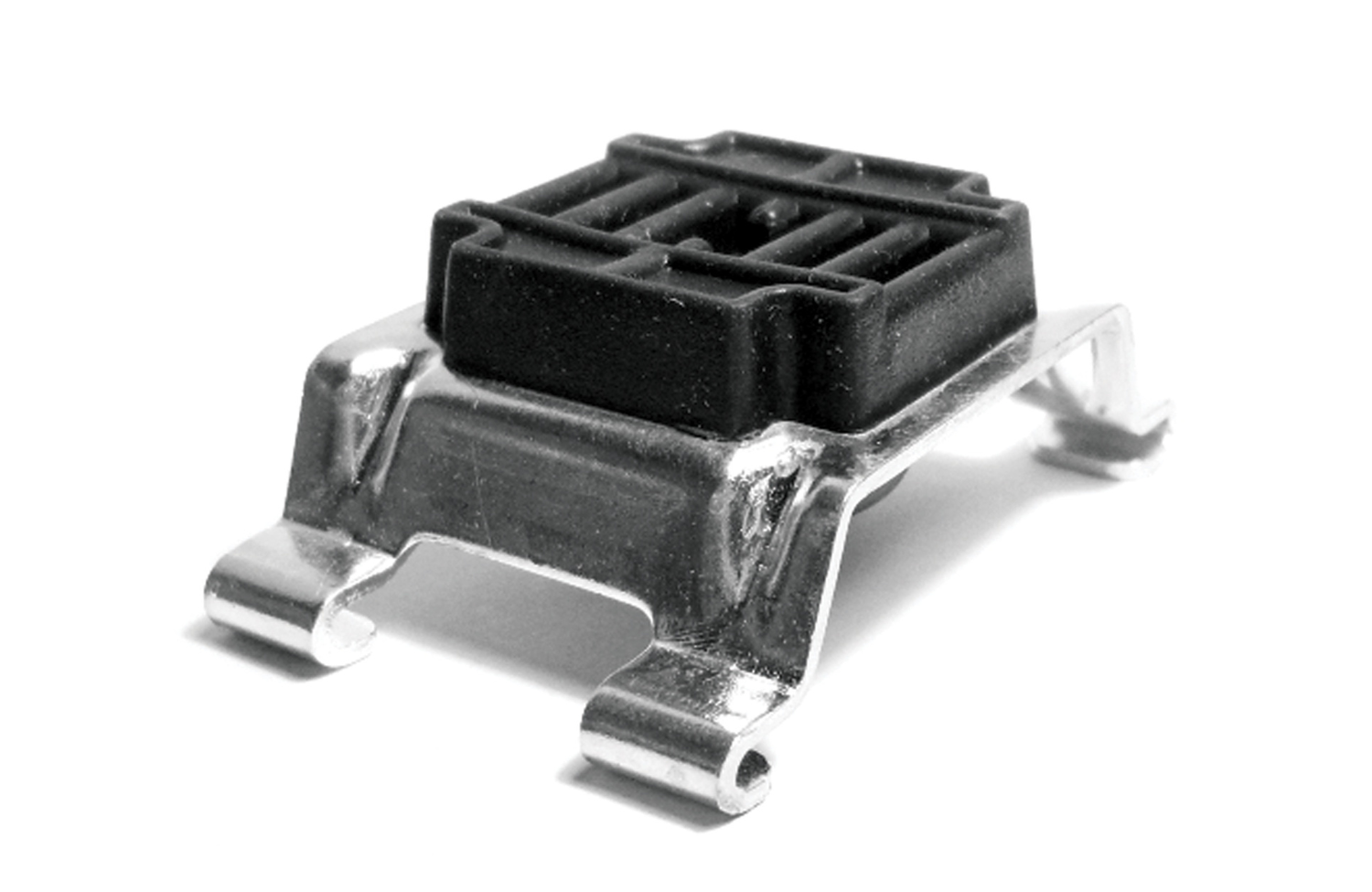

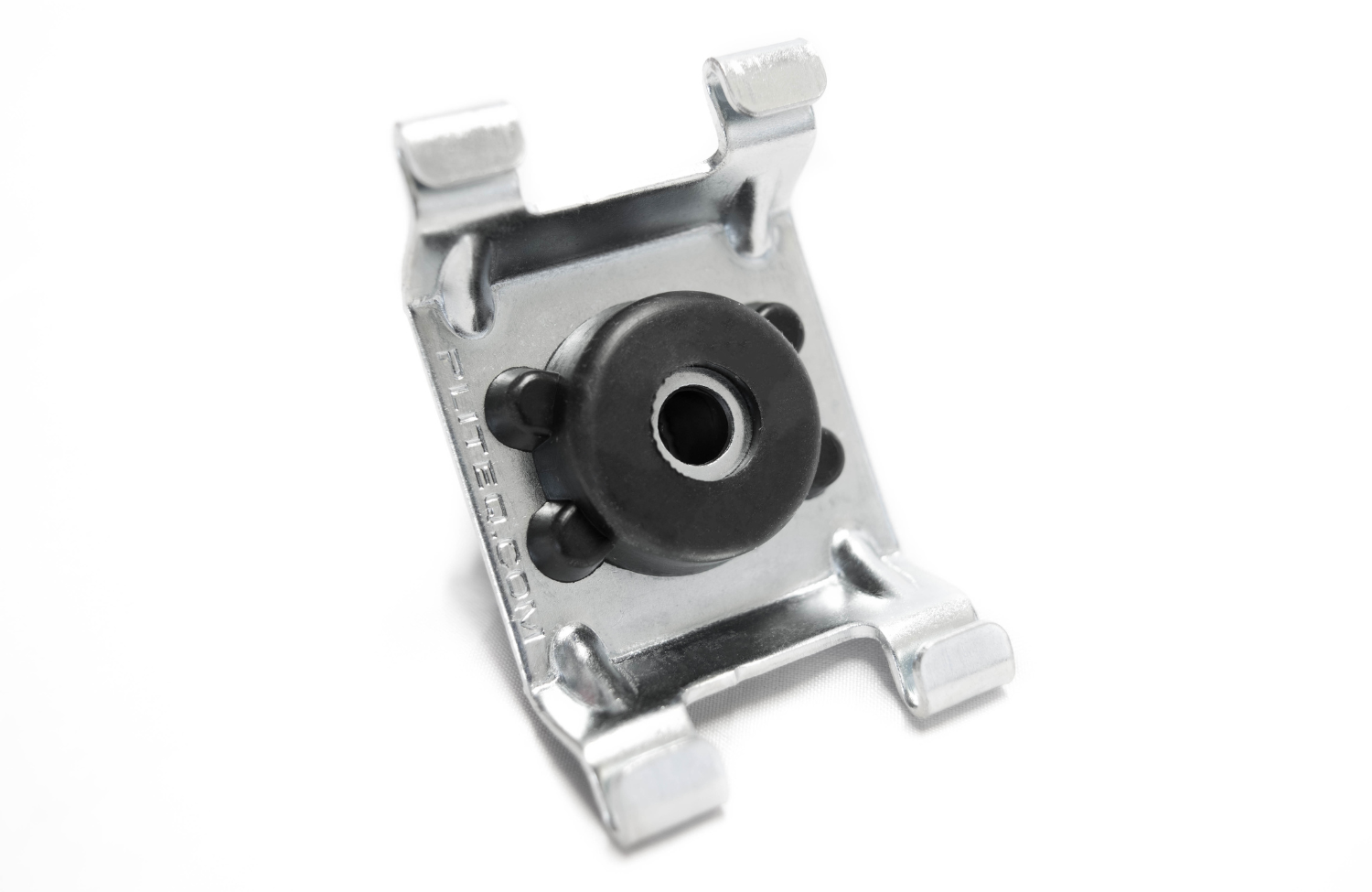

The GenieClip RST is a unibody molded rubber and galvanized steel mount used to attach gypsum wallboard (GWB) to either wall or floor-ceiling assemblies. Made from recycled components, and engineered to allow reduction in assembly weight, the GenieClip RST contributes to LEED® certified building.

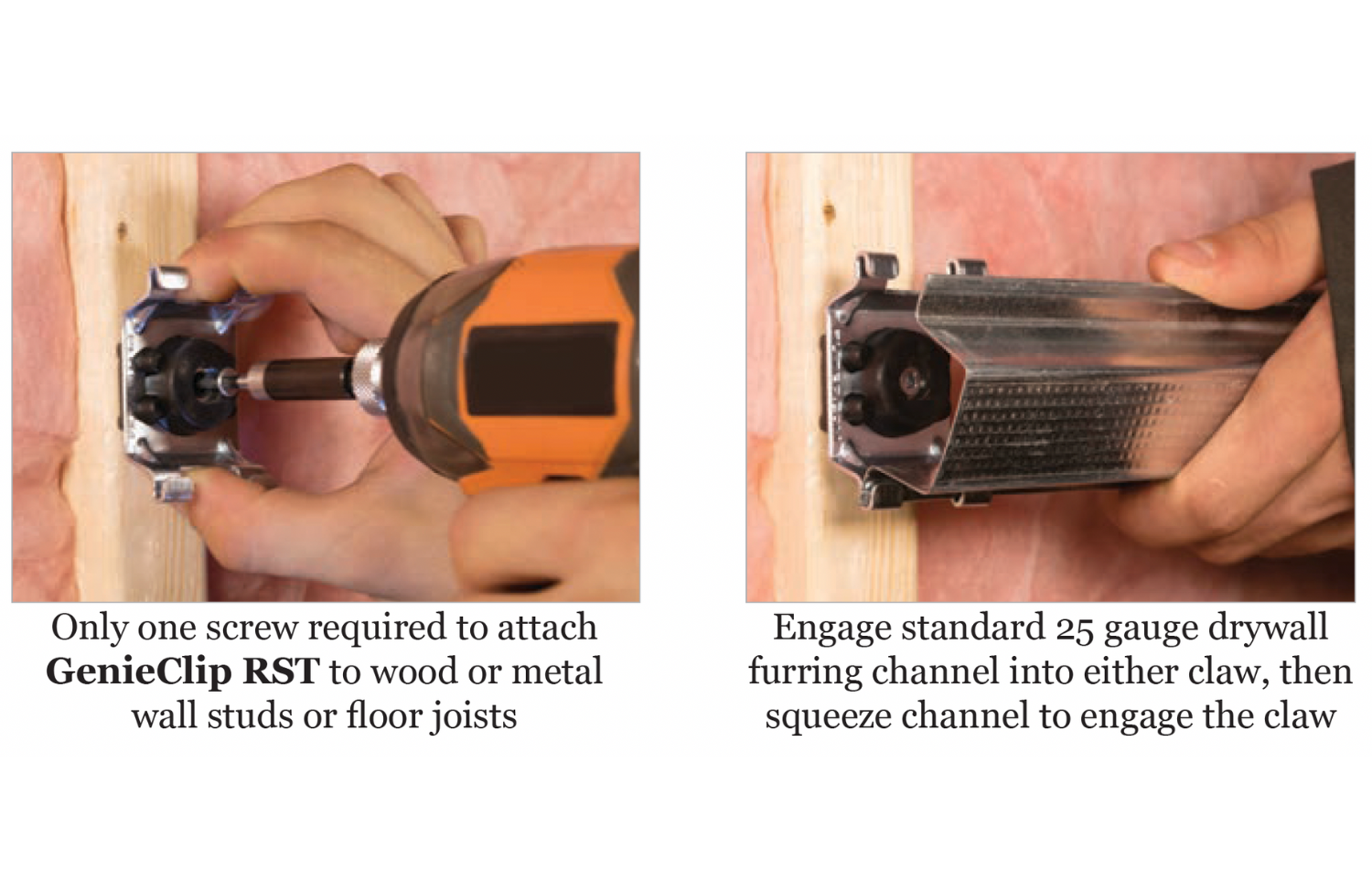

The GenieClip RST is easy and fast to install using a standard steel furring channel, and is extremely stable when held in place with a single fastener. There is nothing to adjust or site fit. The furring channel is simply snapped into the GenieClip RST and the gypsum wallboard can be immediately installed.
GenieClip RST is only for use on 25 gauge furring channel.
PRODUCT DETAILS
GenieClip
FIRE TESTING
Genie Clip for use in Design Nos.:
G501, G502, G507, G524, G534, G535, G536, G551, G555, G556, G557, G558, G560, G561, G562, G564 G565, G577, G578, G588, G592, H501, H502, H505, H514, H515, H522, H524, H526, H527, L502, L505, L510, L511, L513, L514, L516, L518, L521, L523, L528, L532, L534, L541, L542, L546, L547, L550, L562, L563, L569, L570, L573, L574, L576, L577, L579, L585, L587, L589, L590, L593, M502, M506, M510, M515, M521, M523, M525, M527, M531, M532, M545, M546, M563, P519, P522, P533, P547, P556, P561, P562, P571, U305, U309, U311, U320, U331, U334, U340, U341, U342, U344, U356, U396, U415, U419, U423, U440, U451, U465, U473, U4103, V310, V323, V324, V346, V481, V498, W307, W445, W469, W496, M562.
