LATH ACCESSORIES

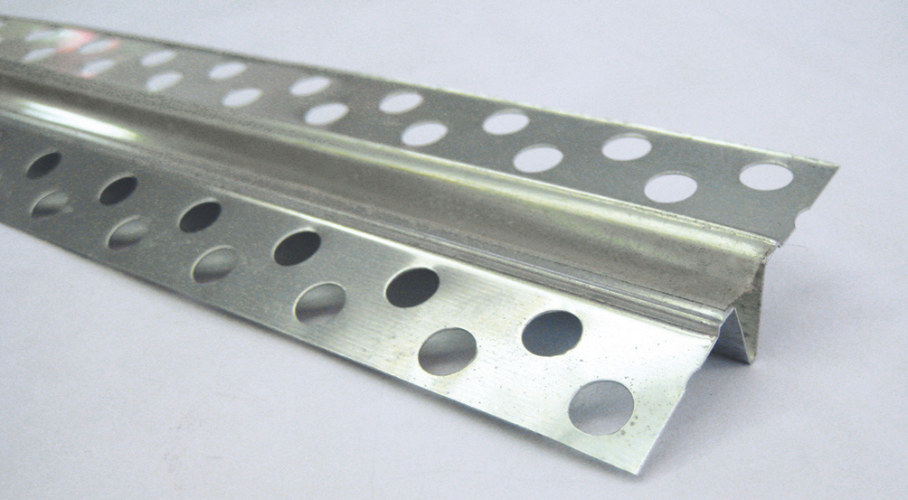

USE: To relieve the stresses from expansion and contraction across the joint in large ceiling and wall areas in drywall and veneer finish systems. It is used from floor to ceiling in long partition runs and from door header to ceiling. It is also recommended for repair of existing plastered masonry. Made of roll-formed zinc to resist corrosion, it has 3/32” grounds. Plastic tape protects 1/4” wide x 7/16” deep opening, and is to be removed after installation.

STOCK LENGTHS: 10 Ft.

PACKAGING: 25 pieces per carton, weight is 27.5 lbs per box.

LIMITATION: Where sound transmission and/or fire ratings are prime considerations, an adequate seal must be provided behind the control joint.

USE: To relieve the stresses of expansion and contraction in plaster or stucco. It is available in zinc or galvanized steel. Zinc should be used for exterior applications.

STOCK LENGTHS: 10 Ft.

PACKAGING: 24 pieces per carton

Galvanized or Zinc available in: 3/8”, 1/2”, 5/8”, 3/4”, 7/8”

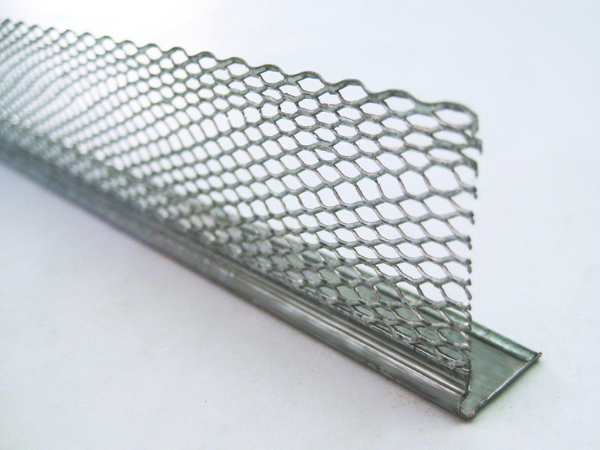

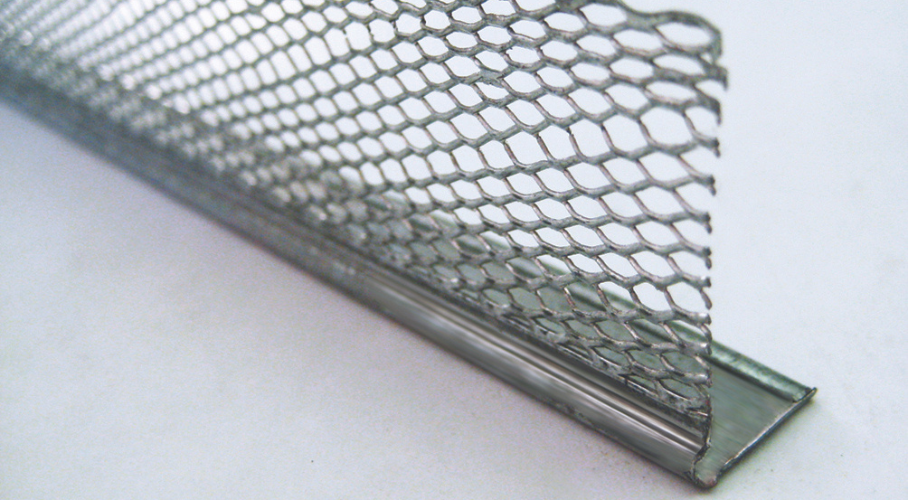

USE: As a veneer plaster stop and as an exposed trim around windows and doors. It is also used in conjunction with veneer corner bead.

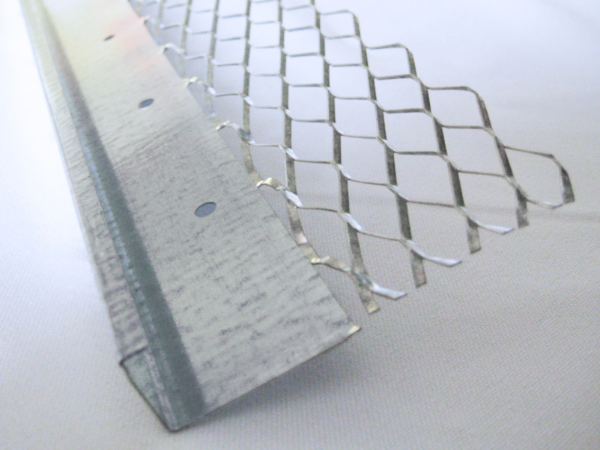

USE: As a plaster stop and as exposed trim around window and door openings. Can also be used at the junction or the intersection of plaster and other wall or ceiling finishes. Zinc should be used for exterior applications. Available with weep holes.

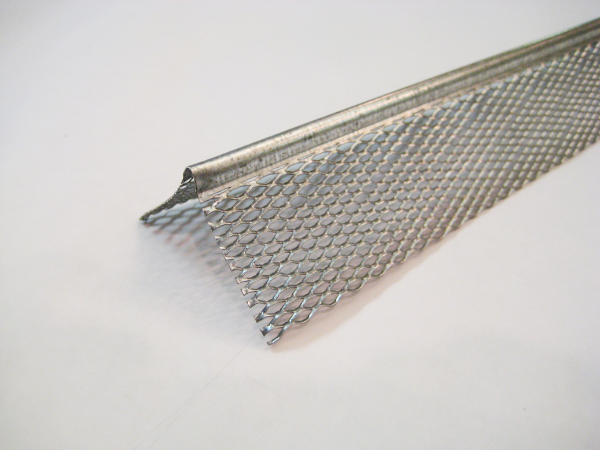

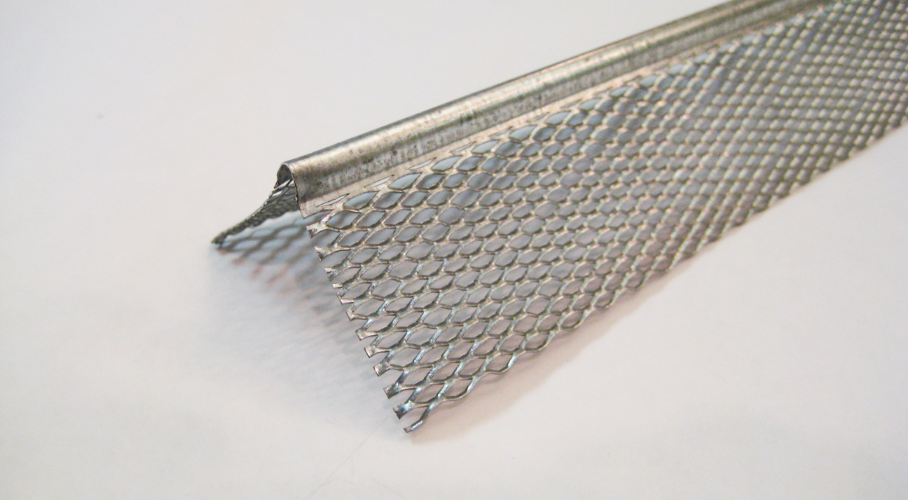

USE: Galvanized steel, used with one-coat or two-coat veneer systems to provide 3/32” grounds. With 1-1/4” fine mesh flanges, either stapled or nailed, provides an effective plaster key and eliminates shadowing.

STOCK LENGTHS: 10 Ft.

PACKAGING: 60 pieces per carton

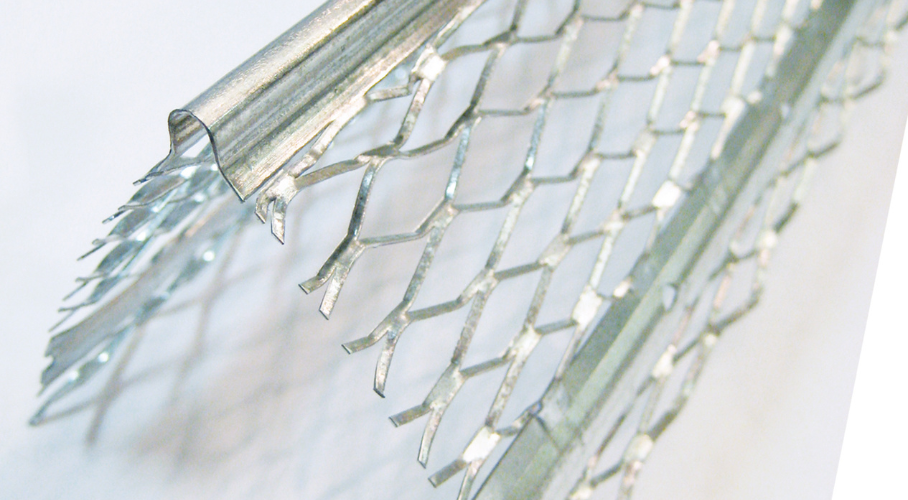

USE: It is galvanized steel and has full 3-1/8” flanges. It is easily adjusted for plaster depth on columns and is ideal for structural tile corners with rough masonry. Double X Corner Bead has perforated stiffening ribs along the expanded flanges.

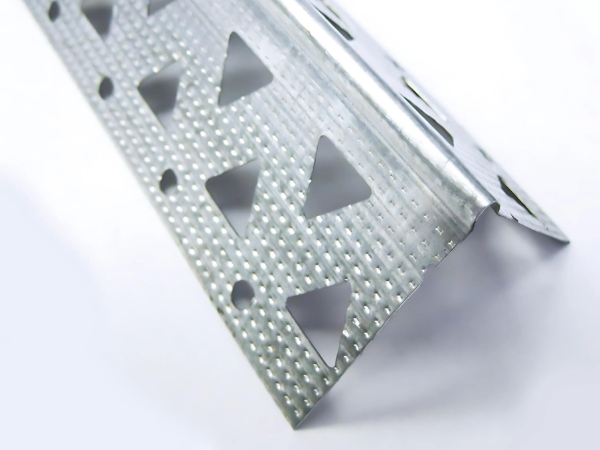

USE: A veneer bead used as an alternate to mini mesh veneer bead. It has a 1-1/2” leg and triangle cut-outs for one-coat or two-coat veneer plaster application. K-Rite corner bead is compatible with all brands of one and two coat plaster systems or multi-layer drywall construction. Perfect choice for repairs, column construction, and new construction.

STOCK LENGTHS: 10 Ft.

PACKAGING: 60 pieces per carton

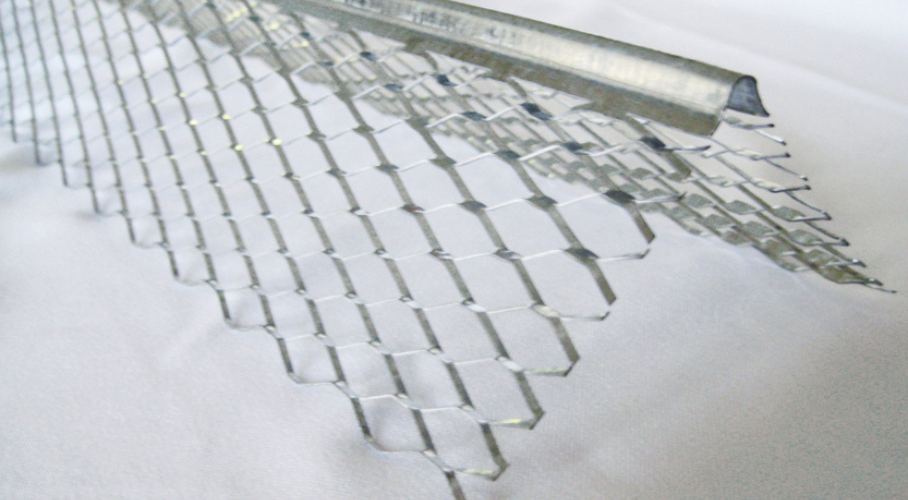

USE: Available in zinc or galvanized steel. Wide expanded flanges are easily flexed. Preferred for irregular corners. It provides increased reinforcement close to the nose of the bead. Zinc should be used for exterior applications.

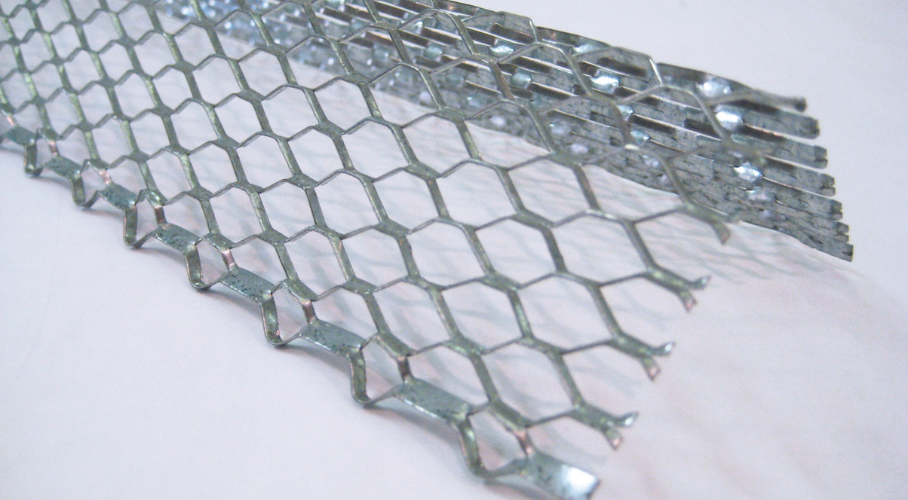

USE: Expanded mesh component that is used as corner reinforcement on interior angles where lath is not carried around and over non-ferrous bases such as masonry and wood lath.
