METAL LATH
Metal lath is manufactured by slitting and stretching galvanized steel to form small openings.
The small openings allow the keying of plaster or stucco so it will bond to the lath. Lath provides a strong base for the finishes, preventing cracking and ensuring durability.
Marino\WARE® metal lath is engineered to meet or exceed industry standards, including ASTM and AISI specifications. We offer consistent quality for reliable performance.
- ASTM C1063
- ASTM C841
- ASTM C847
- ASTM A653
PRODUCT DETAILS

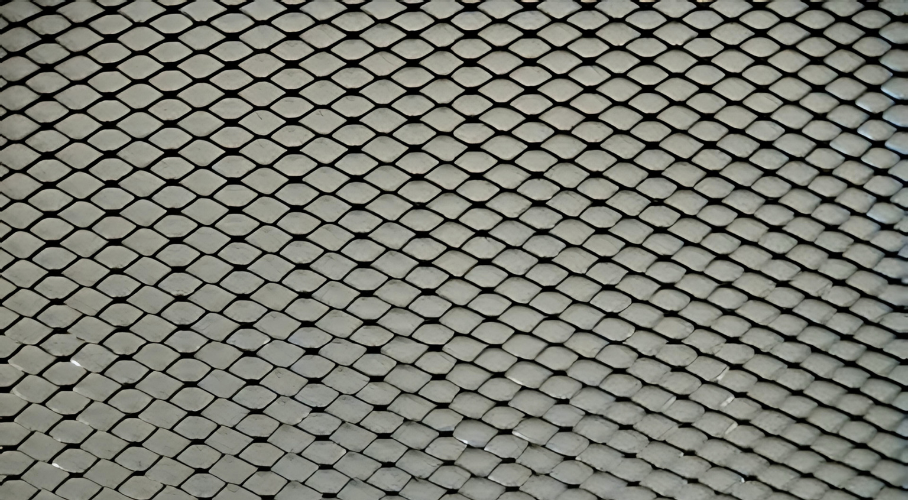

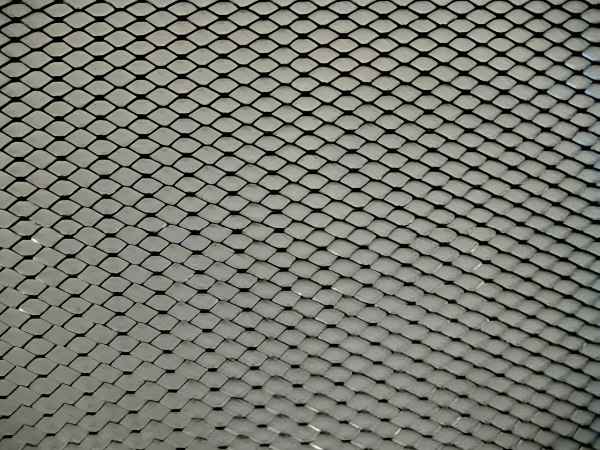

DIAMOND MESH LATH
USE: Manufactured by slitting and stretching galvanized steel to form small openings to allow the keying of plaster so it will bond to the lath. Diamond Mesh Lath can be bent easily to create curved surfaces.
SIZE: 27” x 97” (686 mm x 2440 mm)
MATERIAL: G-6

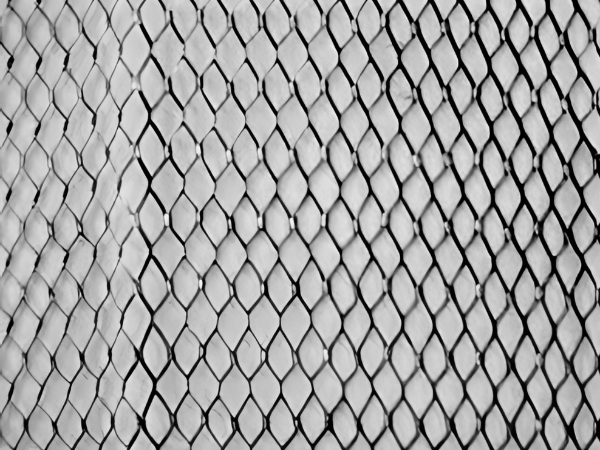

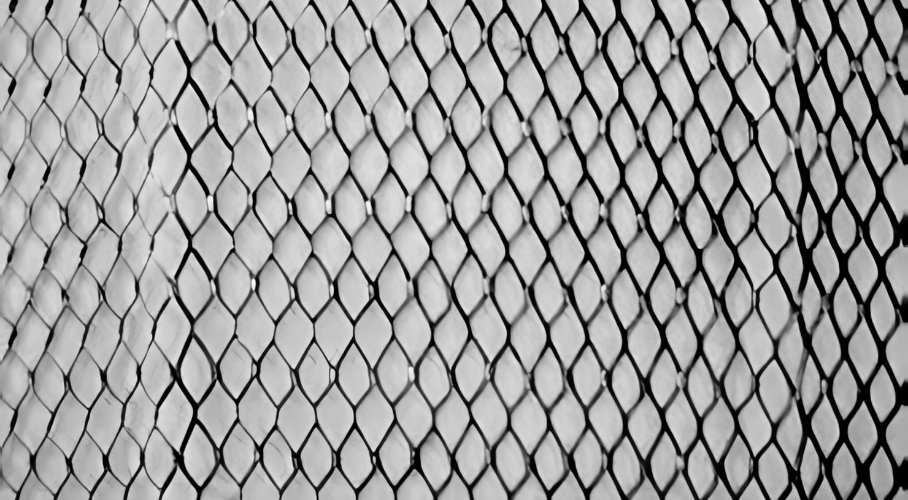

V-GROOVE MESH LATH
USE: For exterior stucco work over sheathing and as a plaster base over masonry walls. Self-furring embossed “V” groove holds the lath away from the surface to aid in the keying of stucco to the lath.
SIZE: 27” x 97” (686 mm x 2440 mm)
MATERIAL: G-60

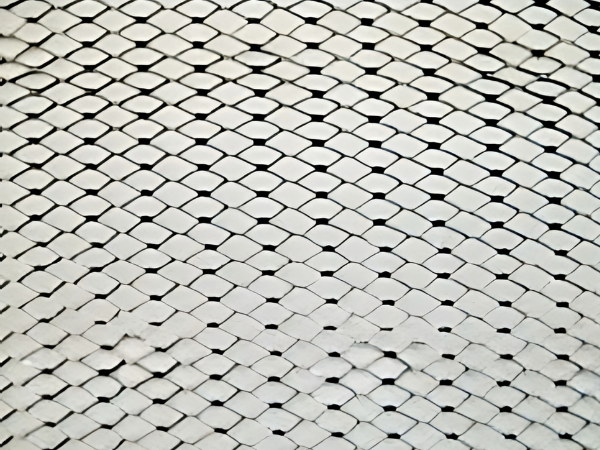

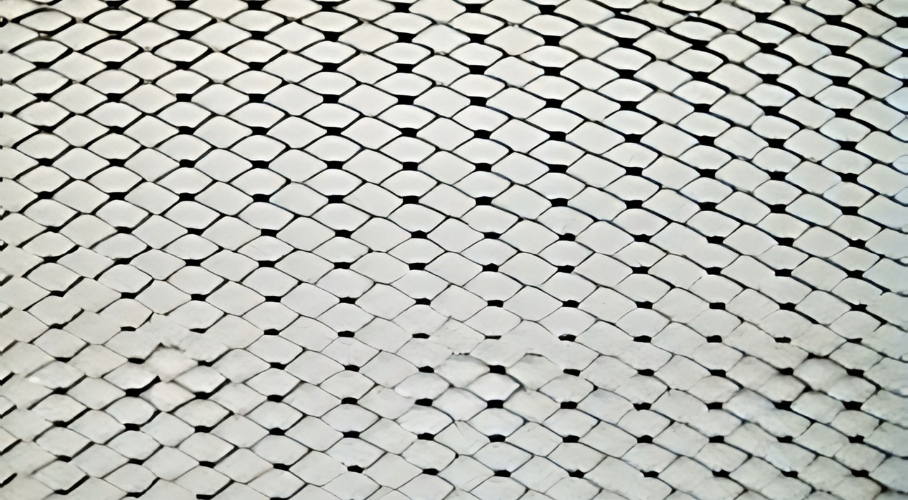

SELF FURRING DIAMOND MESH LATH
USE: Uses the same mesh configuration as Diamond Mesh Lath but made with 1/4” dimple indentations spaced 1-1/2” o.c. each way. Used as exterior stucco base, column fireproofing and re-plastering over old surfaces. Available in galvanized only.
SIZE: 27” x 97” (686 mm x 2440 mm)
MATERIAL: G-60

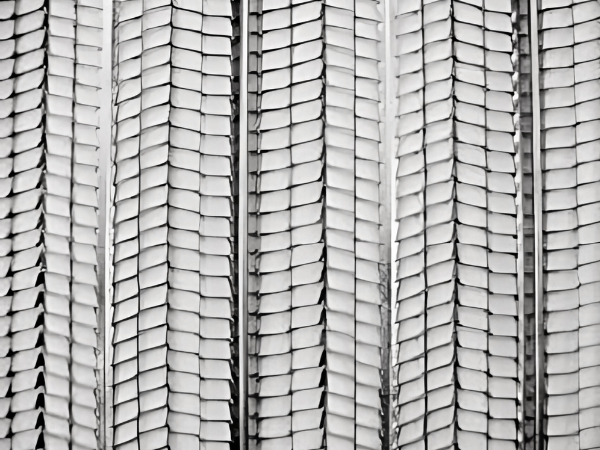

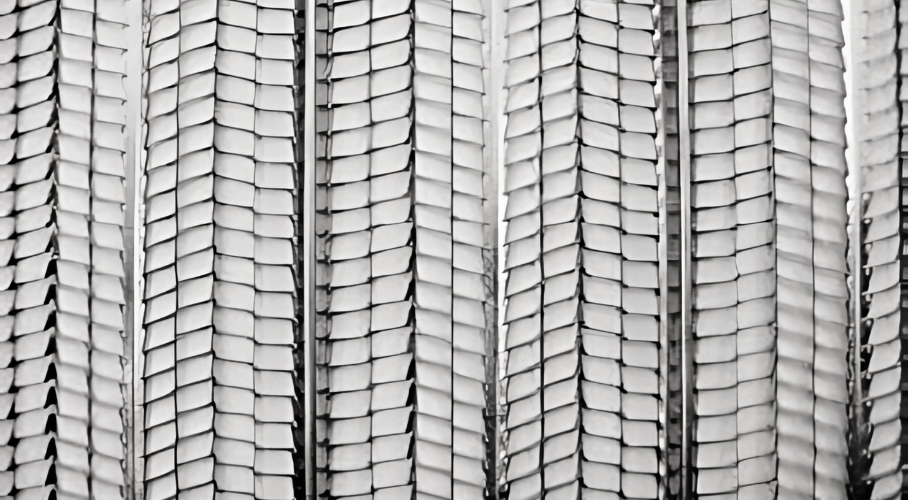

3/8″ HIGH RIB LATH
USE: Superior spanning characteristics over common expanded metal laths, suited for horizontal applications such as ceilings and soffits. Its 3/8” deep ribbed configuration is a self-furring feature. Designed for application on 24” on center.
SIZE: 27” x 97” (686 mm x 2440 mm)
MATERIAL: G-60
STRIP LATH
USE: An expanded mesh product used to fill voids in wire lath construction and as a base for wire lath patches.
