SHAFTWALL
The Marino\WARE CT Shaftwall System is a flexible shaftwall assembly that can accommodate any UL Classified gypsum liner board for maximum versatility in design, purchase, and construction.

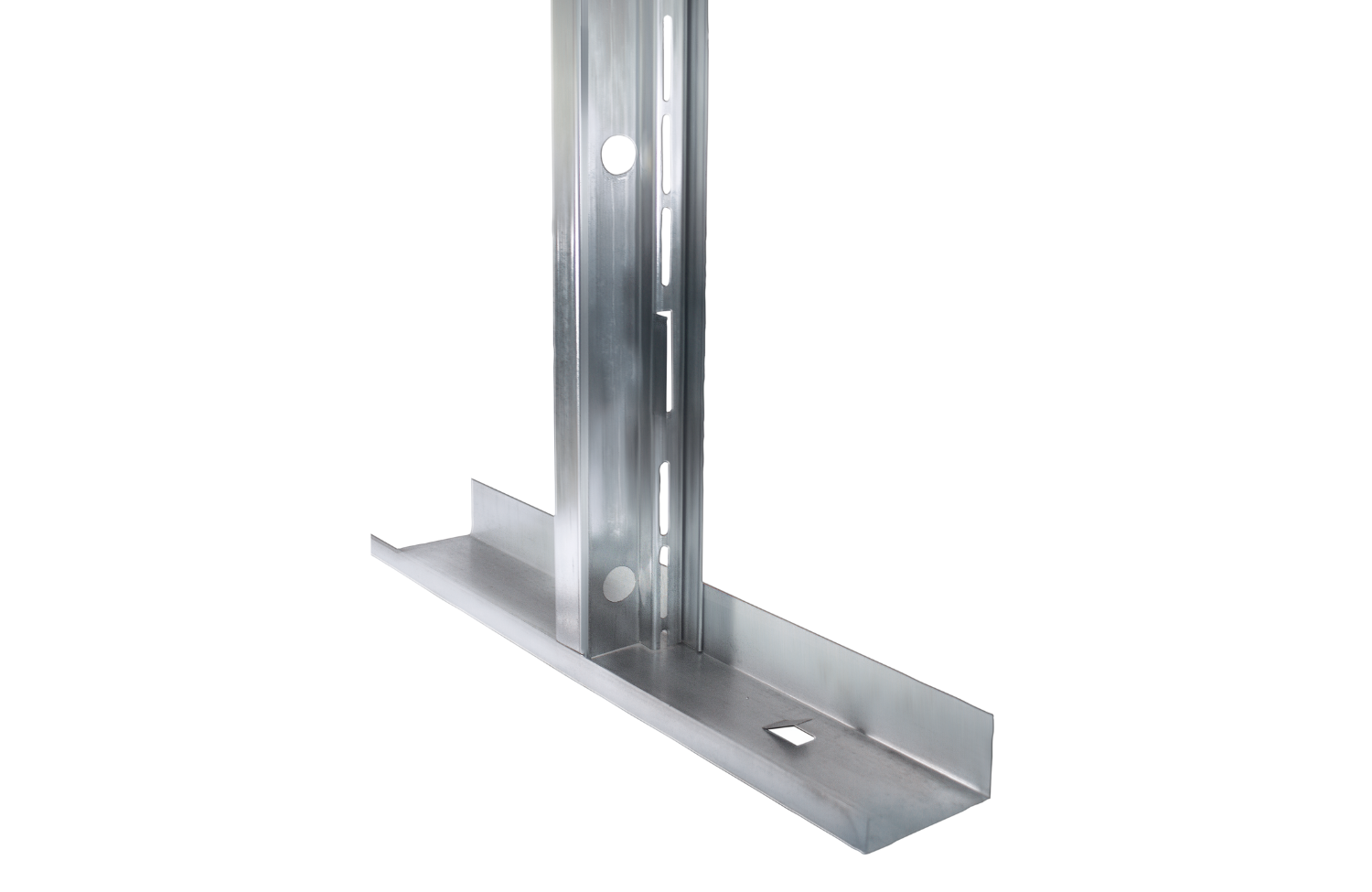

The System is comprised of CT-Stud and Tabbed and Jamb Track components, resulting in easier installation and fewer parts to inventory and purchase.
PRODUCT DETAILS

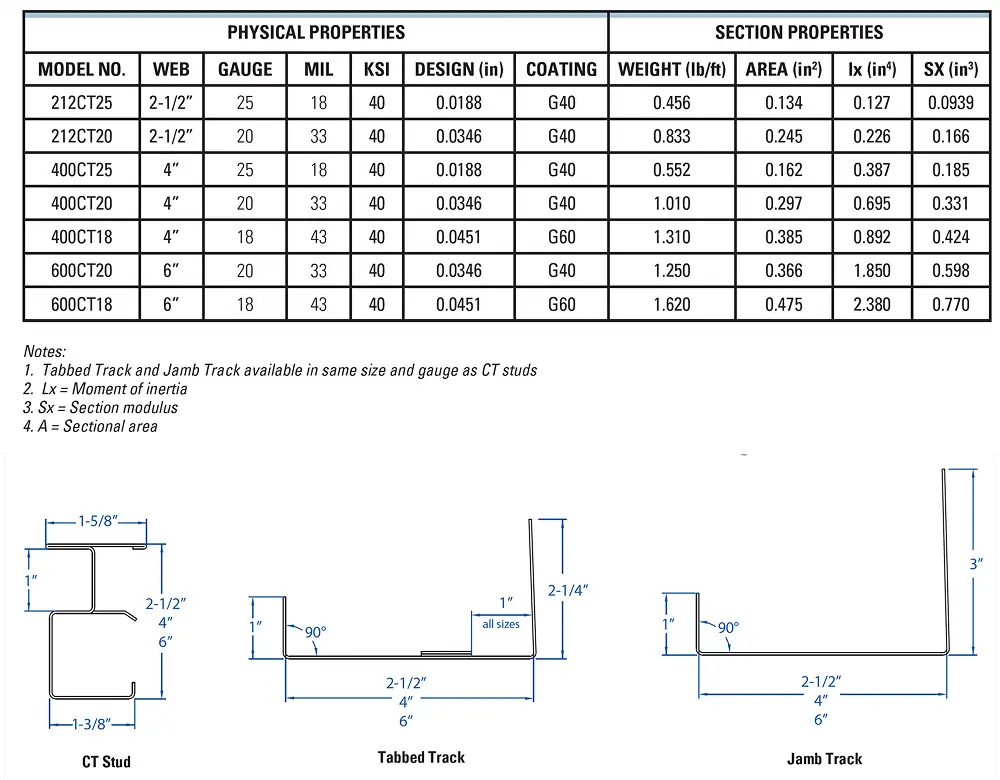

CT STUD, TABBED TRACK + JAMB TRACK
FIRE RATINGS + TEST DATA
1 Hour Shaftwall Assembly
Test Reference: Warnock-Hersey
Fire Components
• Any UL Classified 1” thick Liner Board Type X, Marino\WARE® CT Stud and Tabbed Track
• Any UL Classified of one layer of 5/8” Type X or
1/2” Type C gypsum wallbard, oriented vertically.
Sound Rating (STC)
• 21/2” CT=38/41*
• 4” CT=41/47*
• 6” CT=44/48*
* Represents the same assembly with the addition of 1-1/2" of blanket insulation installed in the cavity.
2 Hour Shaftwall Assembly
Test Reference: Warnock-Hersey
Fire Components
• Any UL Classified 1” thick Liner Board Type X, Marino\WARE® CT Stud and Tabbed Track
• Any UL Classified of two layers of 5/8” Type X or 1/2”
Type C gypsum wallboard, oriented vertically.
Sound Rating (STC)
• 2-1/2” CT=41/46*
• 4” CT=44/49*
• 6” CT=46/49*
* Represents the same assembly with the addition of 1-1/2" of blanket insulation installed in the cavity.
2 Hour Stairwall Assembly
Test Reference: Warnock-Hersey
Fire Components
• Any UL Classified 1” thick Liner Board Type X, Marino\WARE® CT Stud and Tabbed Track
• Any UL Classified of two layers of 5/8” Type X or 1/2”
Type C gypsum wallboard, oriented vertically.
Sound Rating (STC)
• 2-1/2” CT=40/45*
• 4” CT=45/49*
• 6” CT=45/50*
* Represents the same assembly with the addition of 1-1/2" of blanket insulation installed in the cavity.
