SOUNDGUARD®

SoundGuard®

Maximize space and minimize sound transfer.

The Marino\WARE SoundGuard Silent Steel Framing System is a patented interior non-load bearing framing system specifically designed to easily construct partition walls with high sound transmission class (STC) ratings.

Invented and designed by a contractor, SoundGuard’s innovative design simplifies installation, reducing labor costs without compromising on sound performance.

Whether you need complete partitions or partial walls, SoundGuard drywall studs offer a versatile solution for various applications, from condos to hospitals, conference rooms to hotels, and beyond.

High STC ratings, sound test reports available
Faster build-out
Narrower walls, increasing rentable/saleable floor space
Does not require additional bracing or resilient channel
Plumbing wall is available for easy access to mechanical, electrical, and plumbing
1 hr and 2 hr fire rating

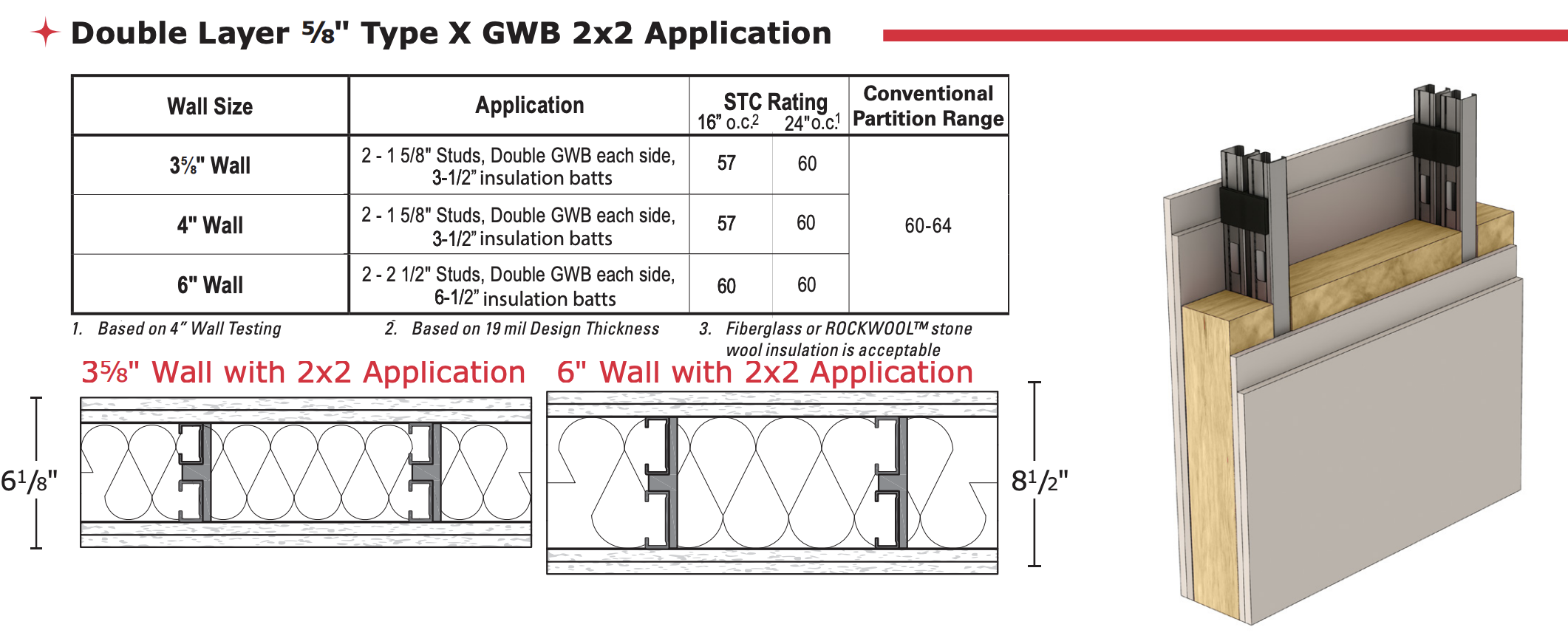

Available in 3⅝”, 4″, and 6″ wall assemblies
Use for nonstructural interior partitions only.
Not for use for ceilings or structural applications.

UL Classified

Narrower allowable wall thicknesses with better or equal STC ratings
- - Increased room dimensions
- Greater saleable square footage
- Revenue gains for owner
Equivalent or better to many partition and chase wall assemblies
- Eliminates resilient channel
- Half as many studs and track to install
- No cross bracing and CRC lateral bracing

Replaces typical partition and chase wall assemblies with equal or lesser wall thicknesses
Lower material costs – superior STC ratings
- Reduces the amount of studs and track to install
- No resilient sound channel required
- No cross bracing and CRC lateral bracing
Faster build-out, saves labor, field-tested, contractor approved, pre-assembled with built-in air space
Handles just like a typical single stud
Risk reduction quoting, planning, stocking, waste, labor over runs, durations
UL rated achieves 1 hr and 2 hr fire rating (ASTM E119)
Use slotted track for deflection conditions in 3⅝”, 4”, and 6” widths

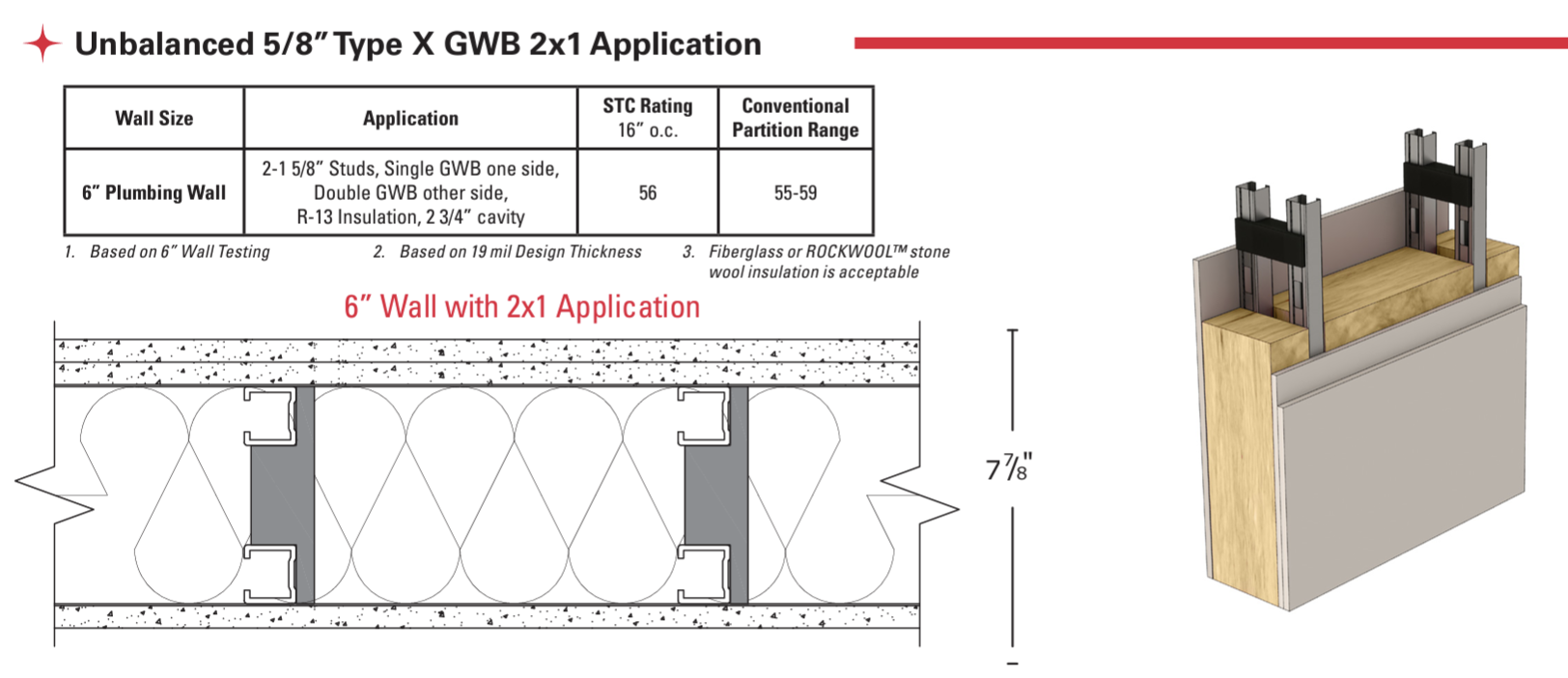

2¾” gap to allow for pipes and electrical conduit lines

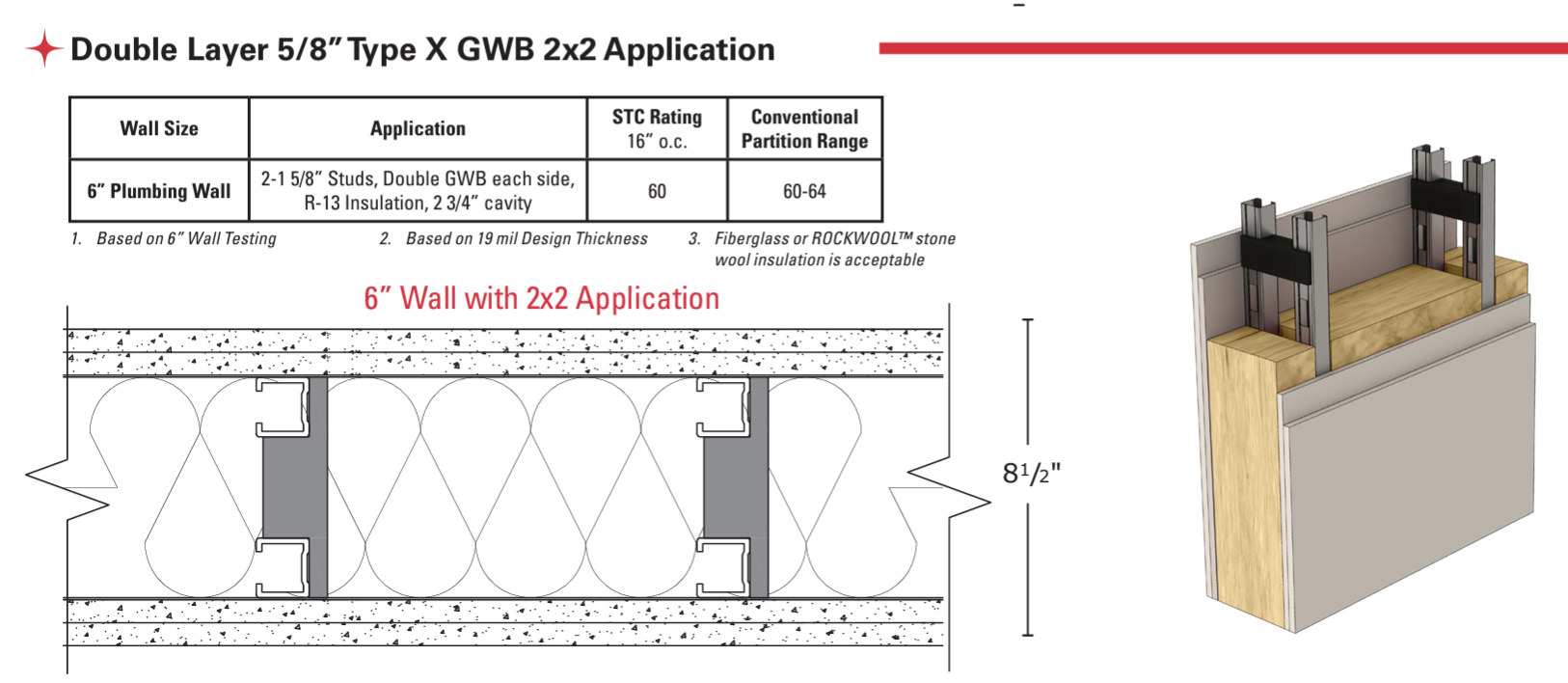

Only available in 6″ SoundGuard plumbing wall studs
UL Certified – UL V463, W475
STC tested
Solves framing issues with conduits and pipes

SEE THE VALUE

PRODUCT DETAILS

SoundGuard

FIRE TESTING

SoundGuard Framing System steel framing member for use in Design No.:

V463, W475.

SoundGuard

COST BENEFIT EXAMPLE

Example Scenario

26 Floors Containing Condo Units
10 Average Number of Units per Floor
260 Total Number of Units
284,815 Total Square Footage of Condo Space
18,200 Total Lineal Footage of Sound Wall
