STRUCTURAL ACCESSORIES

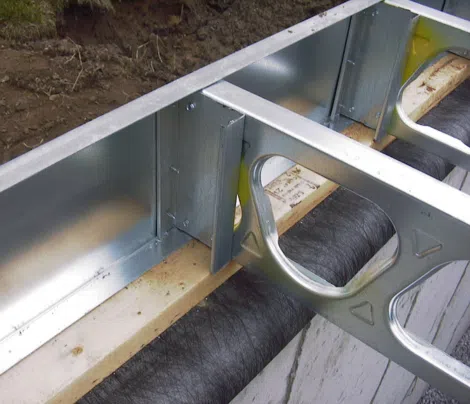

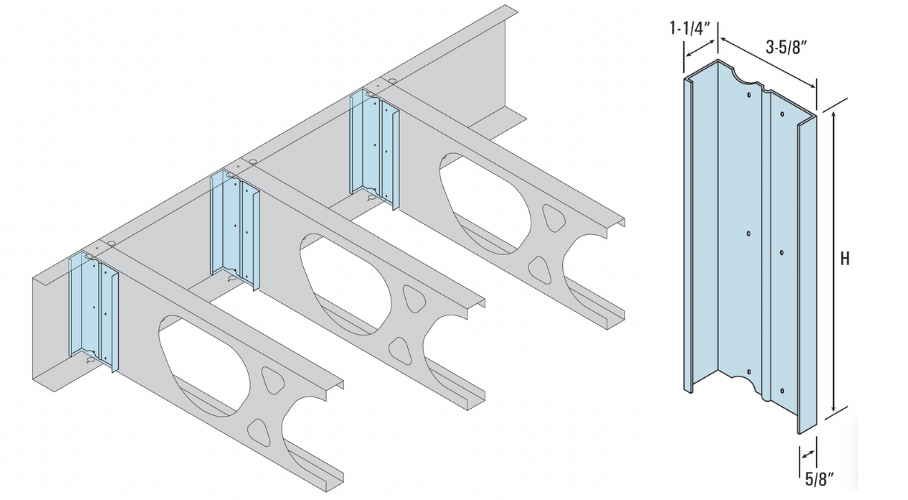

Web Stiffeners are used to provide reinforcement of joist webs to prevent crippling. Web reinforcement is often required by design to enhance the load capacity of joists.

LENGTH (in.): 8, 9-1/4, 10, 11- 1/4, 12, and 14

(inside or outside)

WIDTH: 3 5/8”

INSTALLATION:

• Centered within the load or reaction bearing width.
• Installed on the inside or outside of the joist.
• Web stiffeners require full bearing along their supported ends
• (4-6) #10-16 screws are required to attach the stiffener to the joist web using pre-punched holes.

USE: For miscellaneous attachments of intersecting framing components and right angle corner enclosures at lapped framing conditions.

AVAILABLE SIZES (in): 1-1/2 x 1-1/2, 2 x 2, 3 x 3, 4 x 4, 5 x 5, and 6 x 6

GAUGES (mil.): 25, 22, 20, 18, 16, 14, and 12

PACKAGING: Varies

STOCK LENGTHS: 10 Ft. Other lengths and gauges available upon request.

USE: Mechanical bridging for studs and applications involving metal lath and plaster.

AVAILABLE DEPTHS: 3/4”, 1-1/2”

AVAILABLE GAUGES (mil.): 16 gauge

STOCK LENGTHS: 10 & 16 Ft. Other lengths available upon request.

Tension component of shear wall assemblies. Component of strap & blocking for bridging applications.

USE:

Tension component of shear wall assemblies.

Component of strap and blocking for bridging application.

AVAILABLE GAUGES (mil.): 20, 18, 16, 14, 12 & 10.

LENGTH: As required by purchaser.

USE:

Miscellaneous closures, continuous angles, etc.

LENGTH:

10’-0” maximum. Dimensioned product drawing must accompany order.
