ViperStud®
ViperStud® is a high-performance drywall framing system engineered for strength, ease of installation, and compatibility with conventional flat steel framing components.
A High Strength, Flat Steel Drywall Framing System
The ViperStud Drywall Framing System is designed to replace conventional flat steel studs, delivering exceptional performance without compromising on the familiar benefit.
Installation is the same as conventional studs, eliminating the need for additional training or specialized fasteners, streamlining your installation process and reducing overall expenses.
Additionally, the ViperStud drywall framing system is interchangeable with conventional framing components and the flat steel design ensures effortless plumbing, marking, and adjustments, making it compatible with your existing tools and techniques.
- Lighter, stronger, and more efficient framing system for better handling
- Interchangeable with conventional framing components for installation flexibility
- No extra training or special fasteners required for installation
- Knurl & rib technology adds strength and improves screw performance
- One-track system (ViperTrack25) simplifies material selection and inventory
ViperStud has been verified by Intertek as code compliant to the following codes: IBC 2015, 2018, 2021, and FBC 2020.
ViperStud is tested or conforms to these standards:
- ASTM A1003, C645, C754, E90, E119, E72, C1629
- AISI S220, S100-16/S2-20
ViperStud® is listed in the following:
- Intertek CCRR-0154
- NYC Department of Buildings MEA 56-08-M, MEA 56-08-M Vol 2, MEA 235-08-M

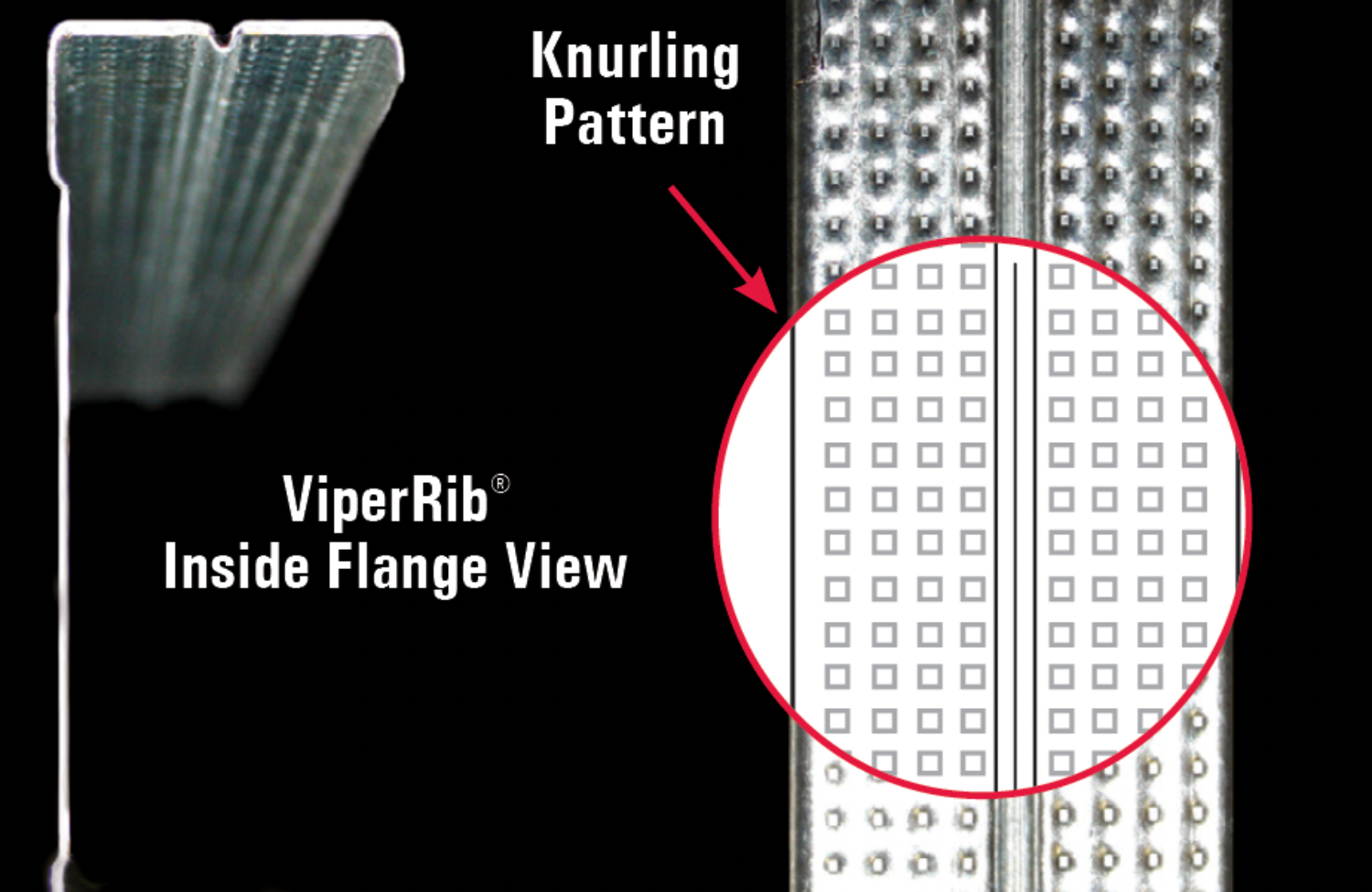

The stud and track system utilizes a knurled flange and reinforcing ribs along with a flat stud design.
Knurling is the pattern of small ridges formed on the flange to prevent screws from walking. Since knurling is only formed on one side of the steel, the stud stays flat, never compromising the strength or thickness of the steel.

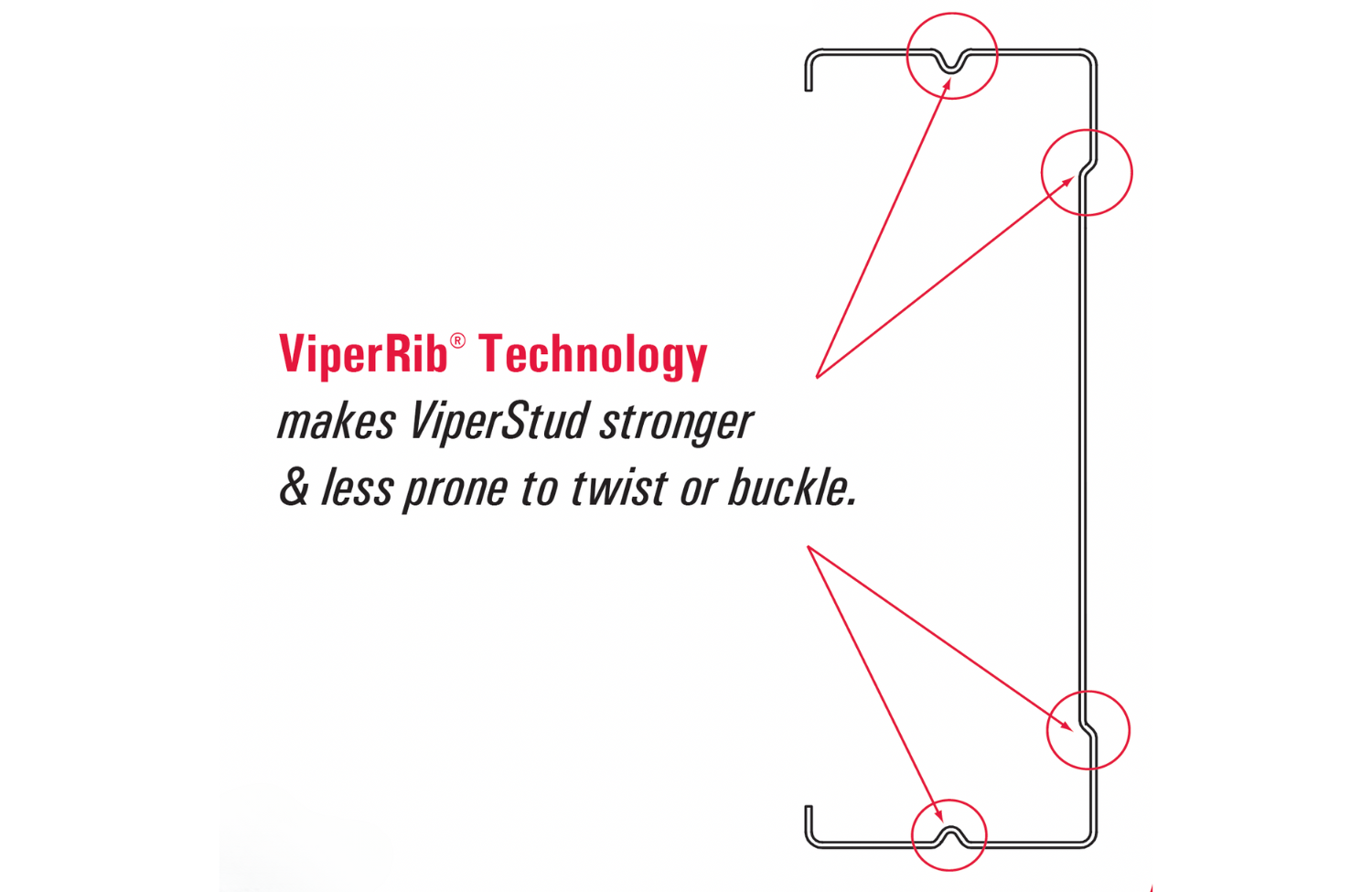

ViperRib® technology applies a reinforced ribbing over the web and flange of ViperStud. The ribs provide added strength, are less prone to twist and creating ”high-shoulders” when finishing gypsum board.
ViperTrack25 has been extensively tested with Viper25 and Viper20 studs. Our third-party testing proves that it is not necessary to use the same thickness track as the stud. Now you can submit a lighter gauge track with your Viper20 studs and reduce your cost.
- Saves money
- Fewer items to inventory

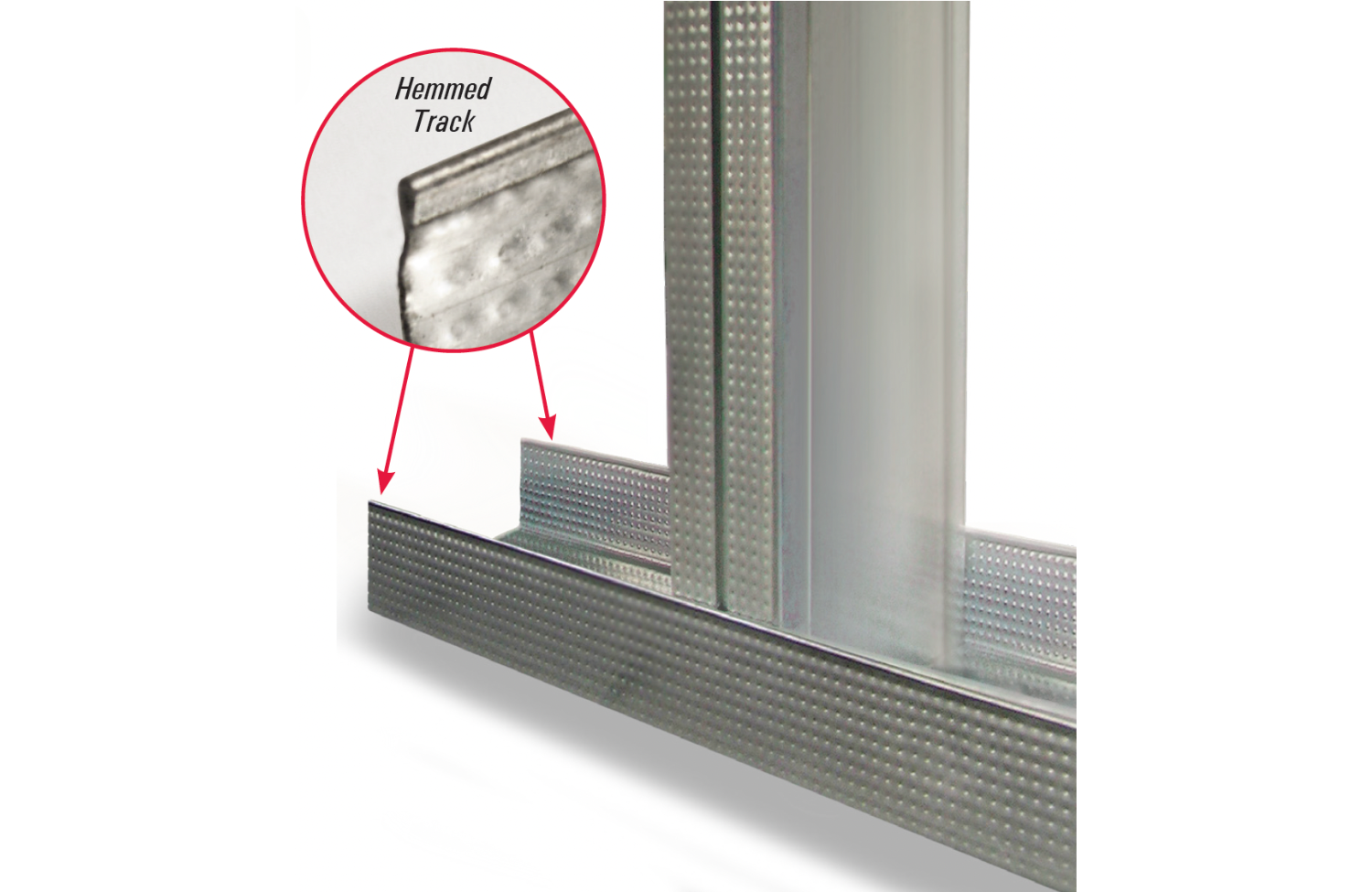

- Safer, ViperTrack25 is fully hemmed
- Supported by testing
Not applicable for Impact or Abuse Rated walls. Fire rated walls should be built per specific assembly requirements.
PRODUCT DETAILS

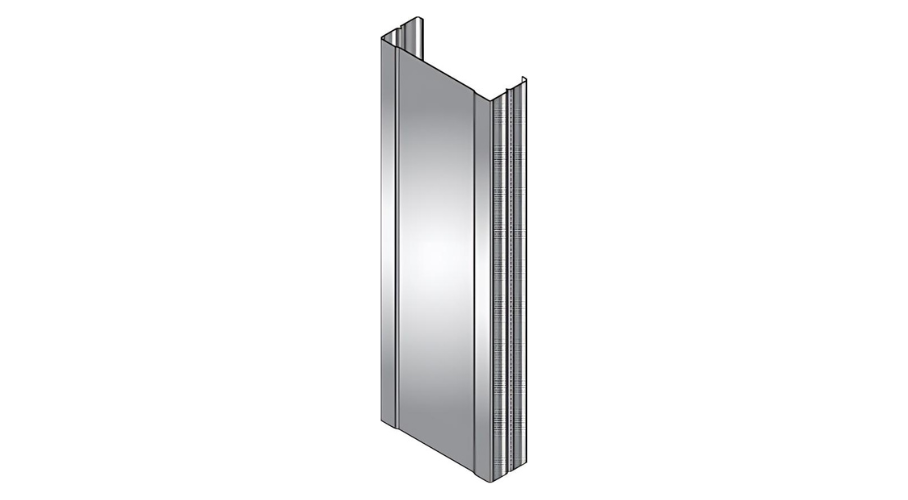

ViperStud
Yield Strength
- Viper25: 50 ksi
- Viper20: 70 ksi
Design Thicknesses
- Viper25: 0.0155″
- Viper20: 0.0190″
Coating
- Per AISI S220
Stud Web Sizes
- 1-5/8″, 2-1/2″, 3-5/8″, 4″ and 6″

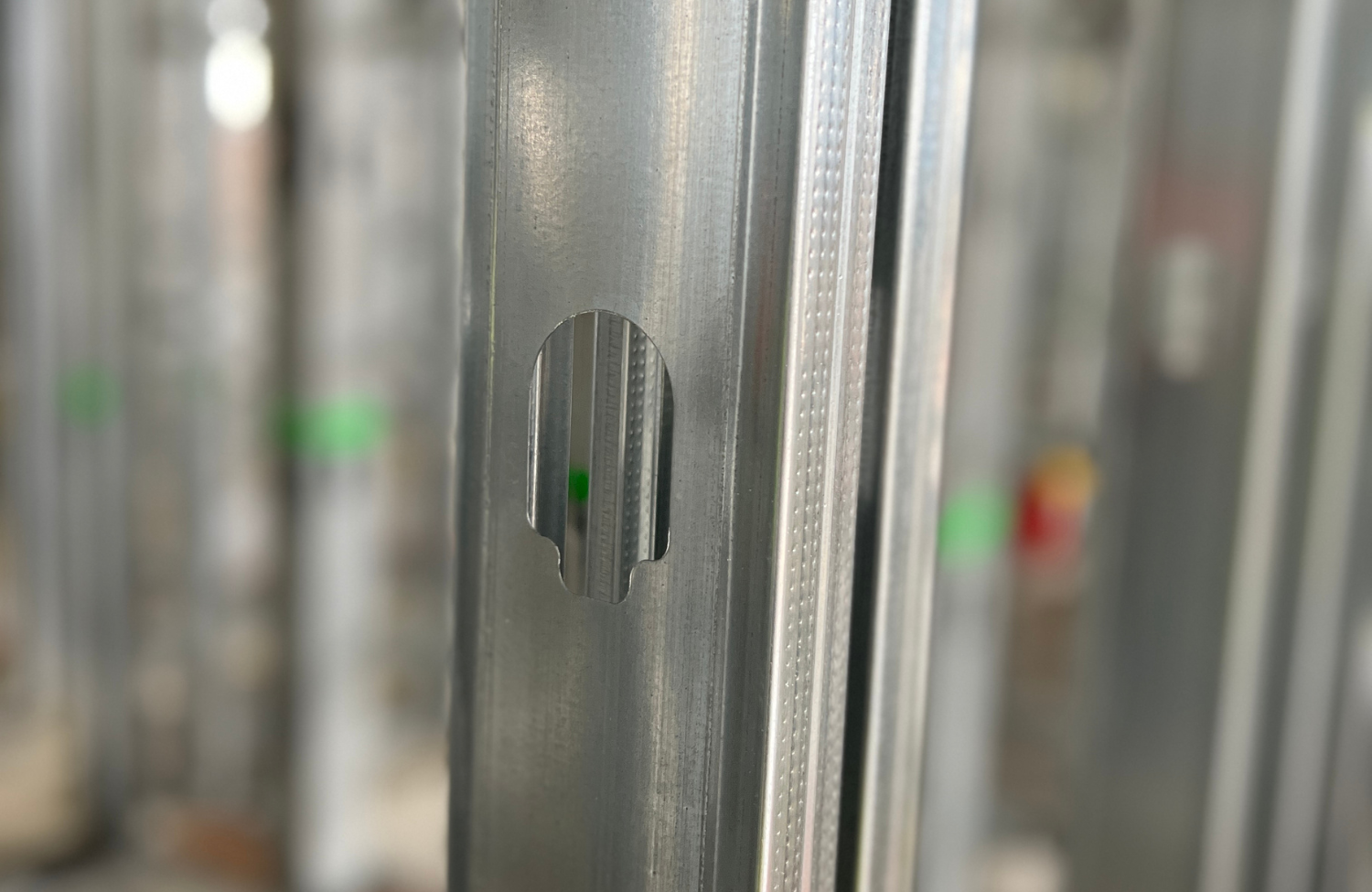

Knockout Sizes
- 1-5/8″ stud = 3/4″ x 1-3/4″
- 3-5/8″, 4″ and 6″ stud = 1-1/2″ x 2-1/2″

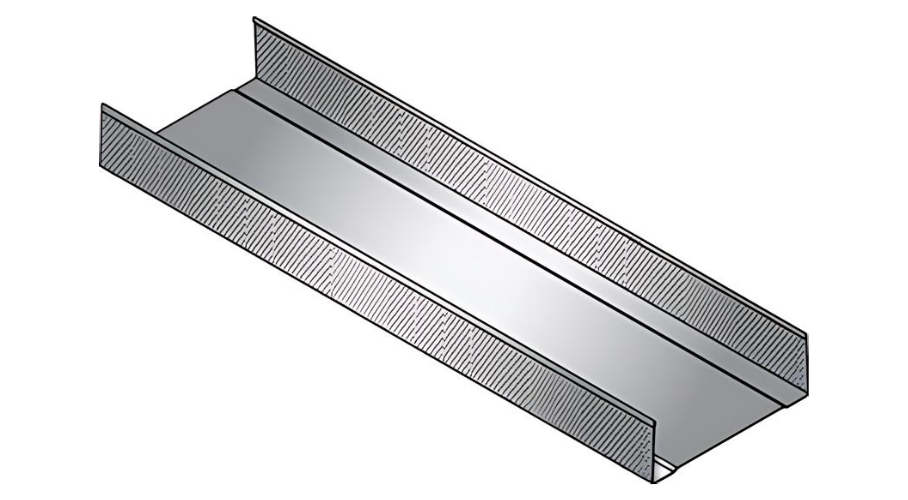

VIPERTRACK (1-1/4″ LEG)
Yield Strength
- 50 ksi
Design Thickness
- 0.0155″
Coating
- Per AISI S220
Track Web Sizes
- (inside dimensions)
- 1-5/8″, 2-1/2″, 3-5/8″, 4″ and 6″
Viper20 Track
- Design Thickness 0.0190″
- 50 ksi

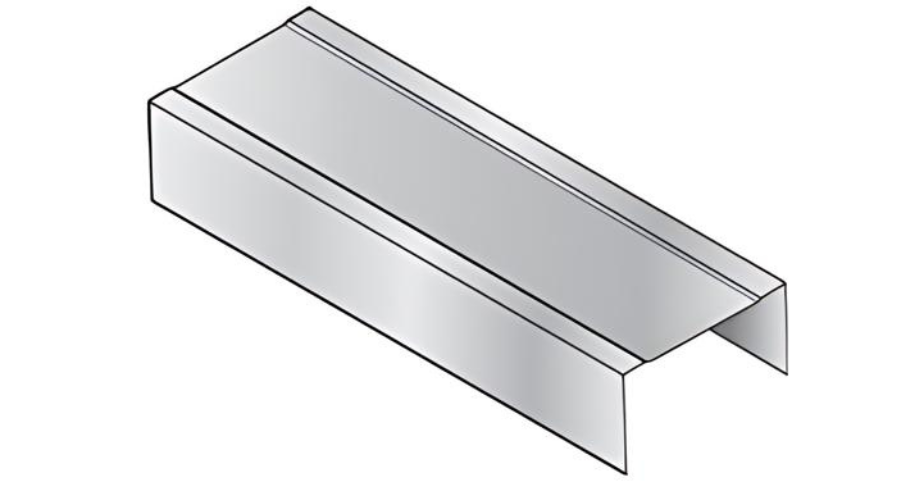

VIPER25 DEEP LEG TRACK
Yield Strength
- 50 ksi
Design Thickness
- 0.0155″
VIPER20 DEEP LEG TRACK
Yield Strength
- 70 ksi
Design Thickness
- 0.0190″

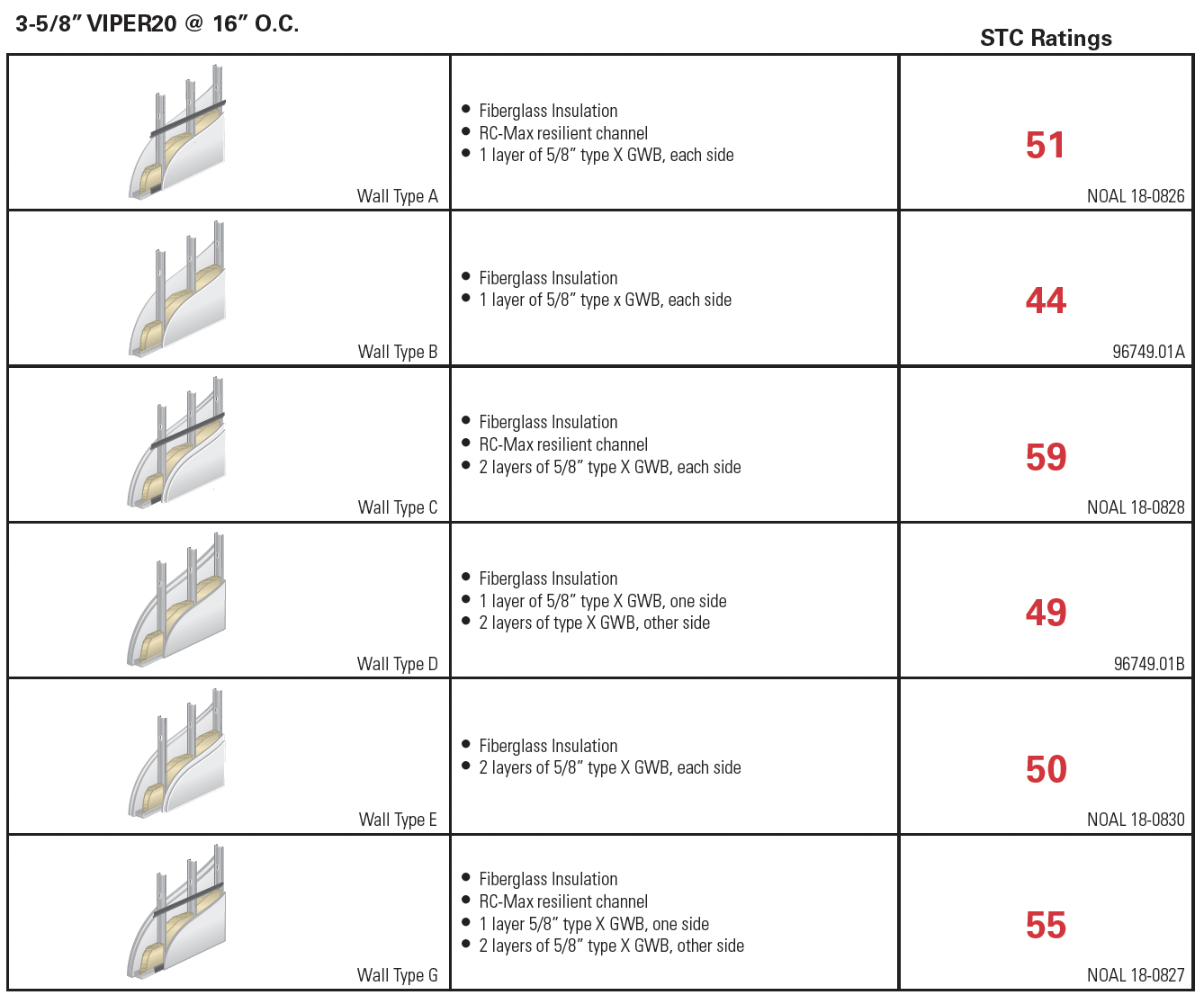

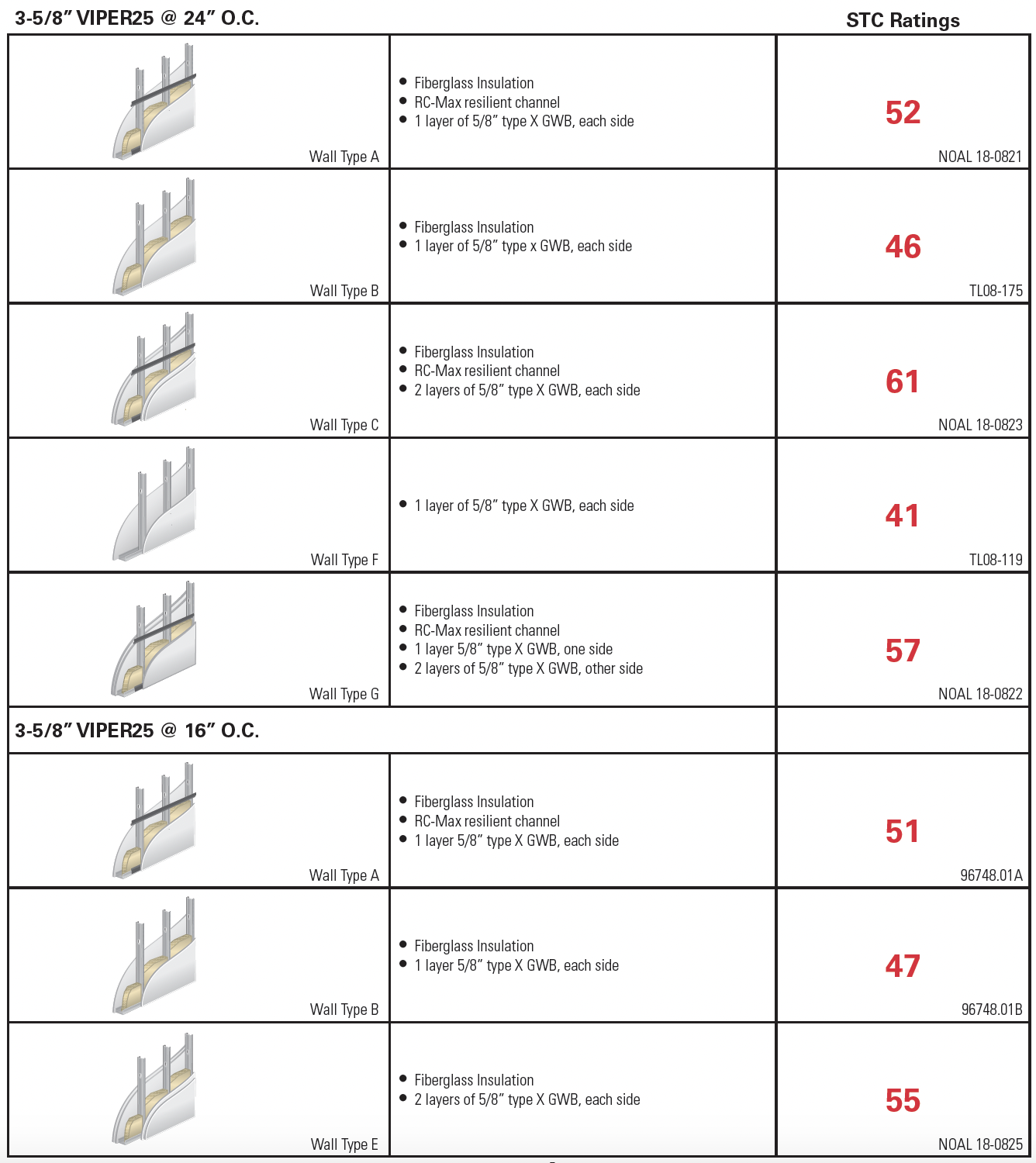

SOUND ASSEMBLIES
FIRE TESTING
Viper25™ steel framing member for use in Design Nos.
U375, U407, U419, U420, U444, U493, V344, V345, V417, V435, V438, V448, V452, V464, V469, V486, V488, V489, V498, W411, W423, W424, W432, W433, W440, W443, W482, W483.
Viper25™ Track steel floor and ceiling runner for use in Design Nos.
U375, U407, U419, U420, U444, U493, V344, V345, V417, V435, V438, V448, V452, V464, V469, V486, V488, V489, V498, W411, W423, W424, W432, W433, W440, W443, W482, W483.
Viper20™ steel framing member for use in Design Nos.
U403, U408, U411, U412, U419, U431, U435, U436, U450, U451, U454, U463, U465, U466, U471, U475, U478, U491, U493, U494, U495, U496, V410, V412, V416, V417, V418, V419, V425, V435, V437, V438, V443, V444, V448, V449, V452, V469, V476, V489, V488, V496, V498, W415, W424, W433, W440, W442, W461, W482, W483.
Viper20™ Track steel floor and ceiling runner for use in Design Nos.
U403, U408, U411, U412, U419, U431, U435, U436, U450, U451, U454, U463, U465, U466, U471, U475, U478, U491, U493, U494, U495, U496, V410, V412, V416, V417, V418, V419 , V425, V435, V437, V438, V443, V444, V448, V449, V452, V469, V476, V488, V489, V496, V498, W415, W424, W433, W440, W442, W461, W482, W483.
Viper20™ Track VT100 steel floor and ceiling runner for use in Design Nos.
FAQS
What is the ViperStud® drywall framing system used for?
The ViperStud® drywall framing system is designed for interior non-structural framing applications, including commercial and residential wall assemblies. It offers a lightweight, code-compliant solution with high-strength performance, making it an ideal choice for contractors working with drywall metal studs and traditional framing systems.
How does ViperStud® compare to other drywall steel studs?
ViperStud® is engineered with knurling and rib-reinforced design, giving it increased strength and making it less prone to twisting or buckling compared to standard drywall steel studs. Its flat profile simplifies layout, plumbing, and fastening for installers.
Can ViperStud® be used with existing metal stud wall systems?
Yes, it is fully compatible with most conventional metal stud wall systems. It’s interchangeable with typical track and stud components and does not require special tools or fasteners for installation.
What sizes and gauges are available for ViperStud®?
ViperStud® is available in multiple web sizes ranging from 1-5/8″ to 6″ and comes in two gauges: Viper25 (0.0155″, 50 ksi) and Viper20 (0.0190″, 70 ksi). These options allow for flexibility in various drywall framing configurations and wall designs.
Is ViperStud® approved for fire-rated and acoustic wall assemblies?
Yes. ViperStud® is tested to ASTM E90, E119, and other standards, and is listed for use in numerous UL fire-rated wall assemblies. It also delivers strong acoustic performance, making it a reliable choice for drywall framing where sound control is a factor.
